ZU VERKAUFEN!

DELFINO 65

Specifications Delfino 65

GENERAL

Length overall: 21,55 meter

Beam: 6,20 meter

Draft (to LWL):1,75 meter

Displacement (to LWL): 80 ton

Year built: 2015

Hull material: steel

Hull colour: blue

Hull thickness: 8 & 6 mm

Superstructure material: steel

Superstructure: 5 mm

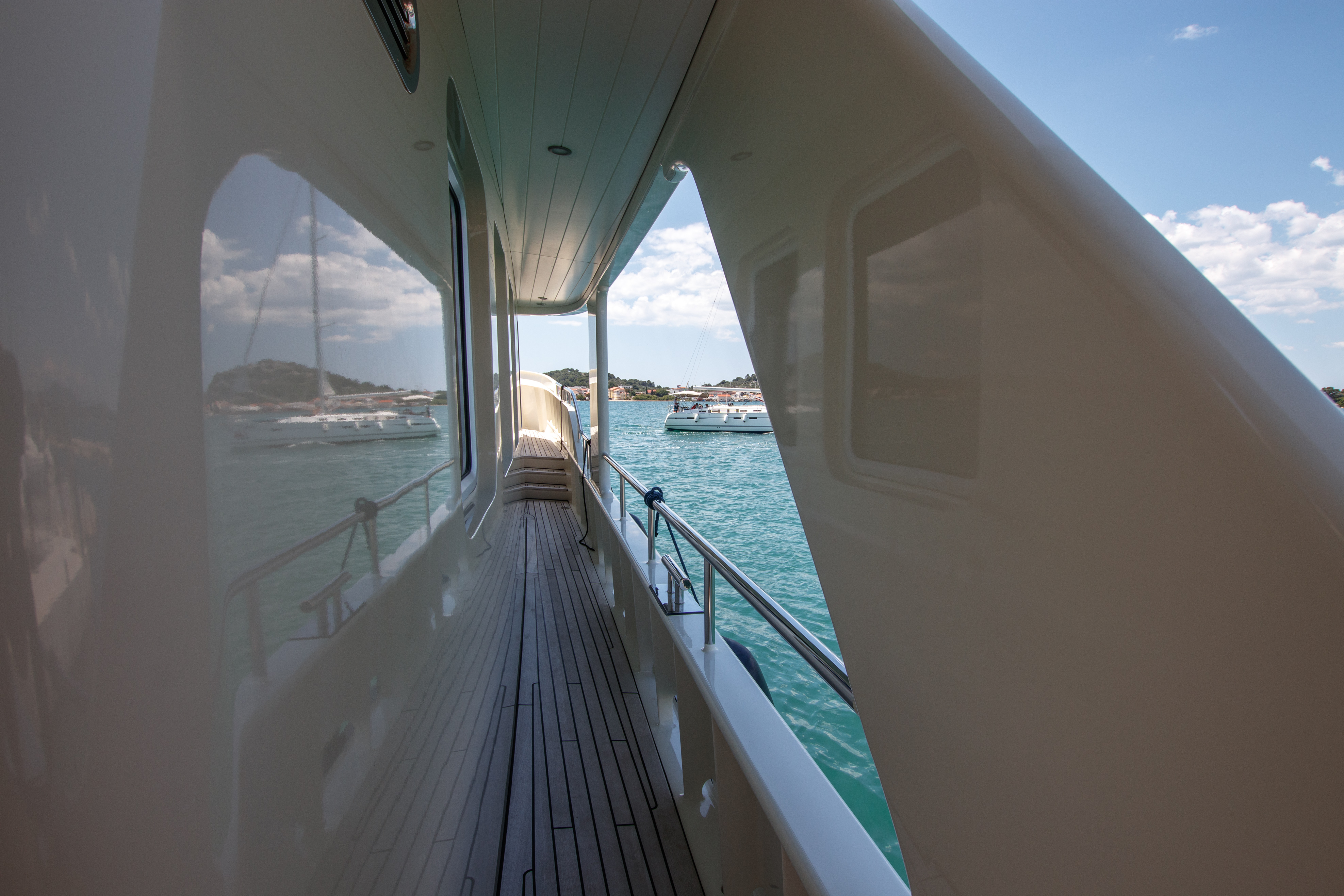

Deck finish: teak

Superstructure deck finish: teak

Antifouling: 2023

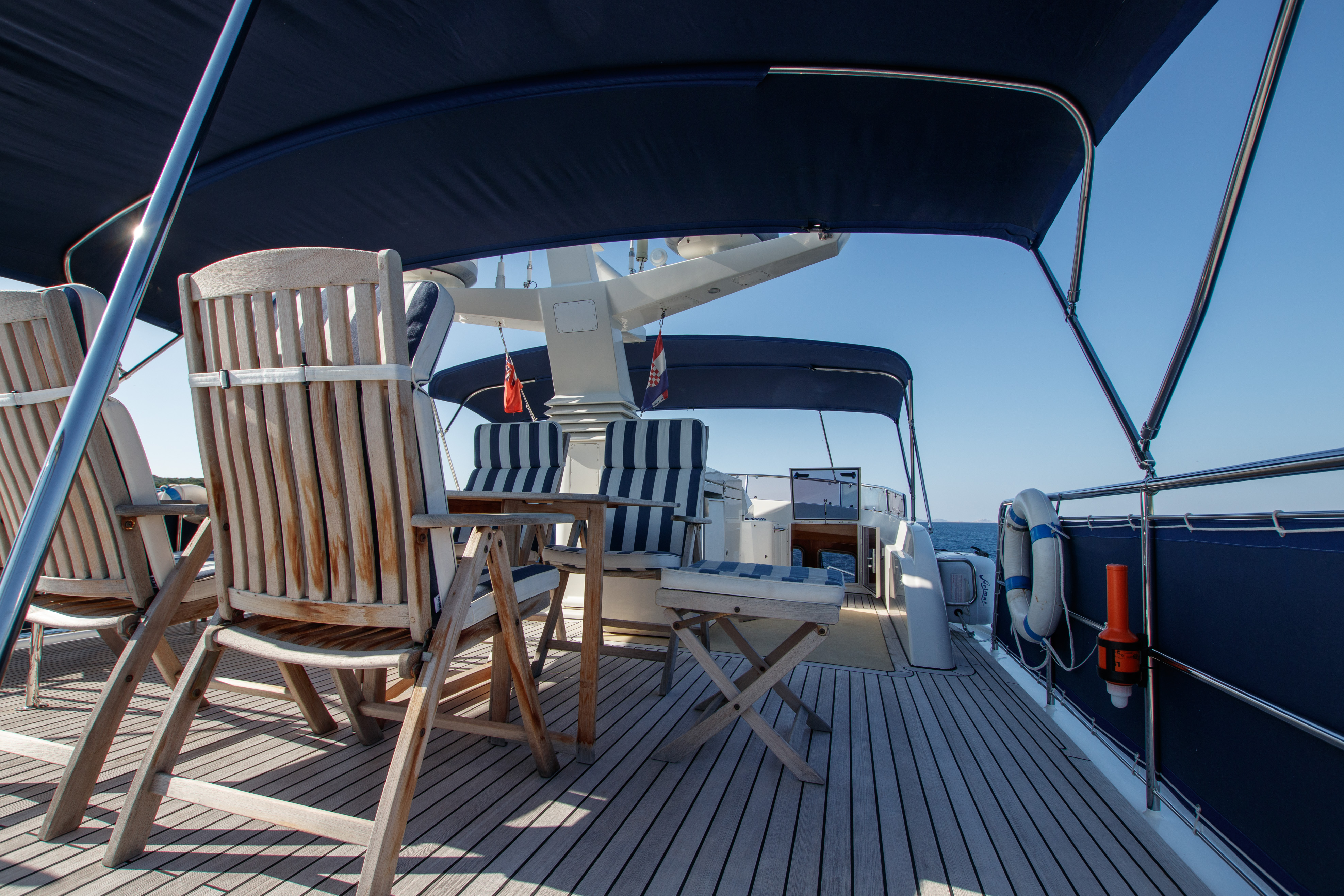

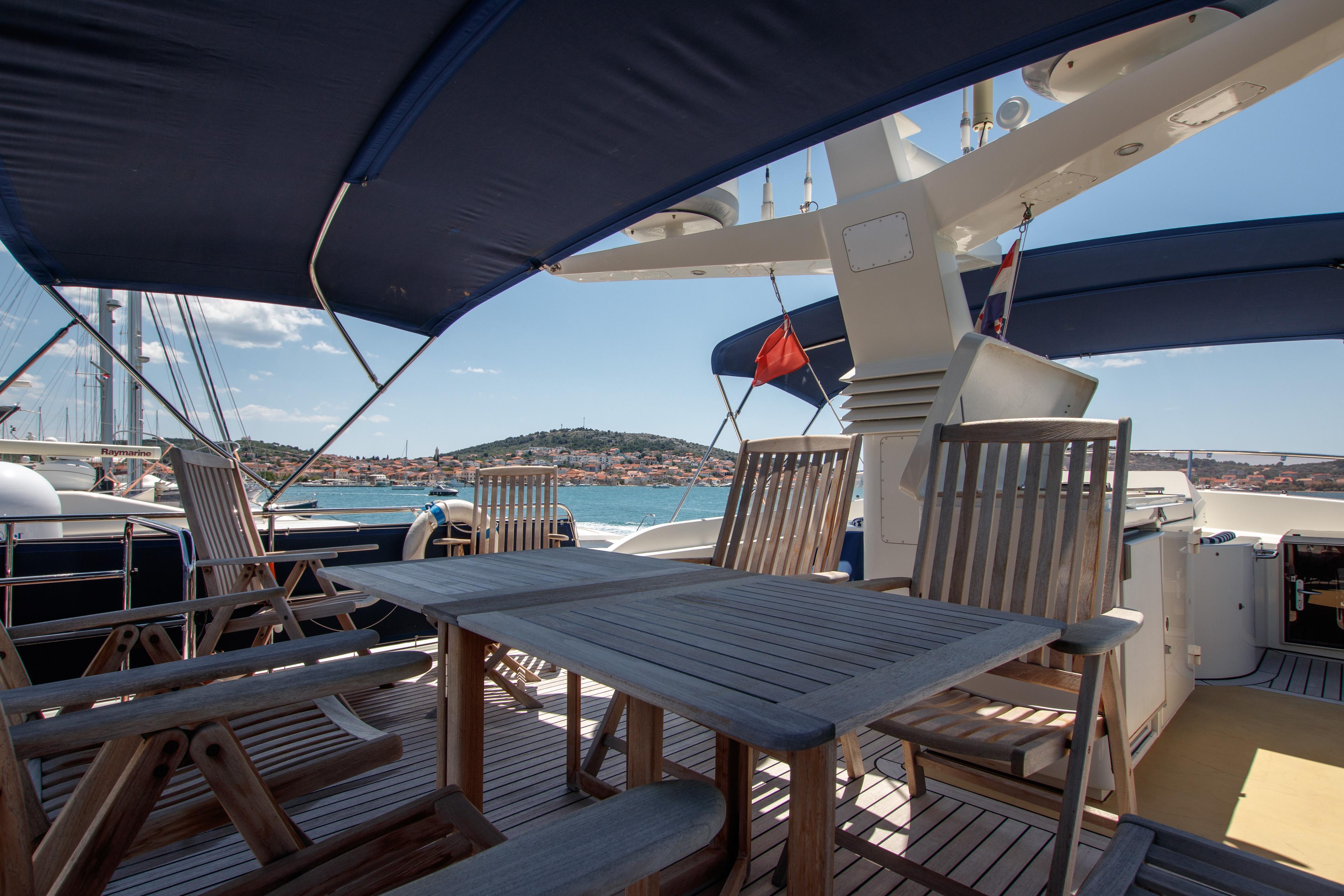

Flybridge: yes

Flybridge suncover: yes

Mast can be lowered: hydraulic

Fuel tank (litre): steel  2x 3000 ps/sb enginer. + 1x 2000 centre enginer. + 1x1000 aft

Freshwater tank: 3400 litre

Blackwater tank:1000 litre

Blackwater tank extraction: deck extraction + pump

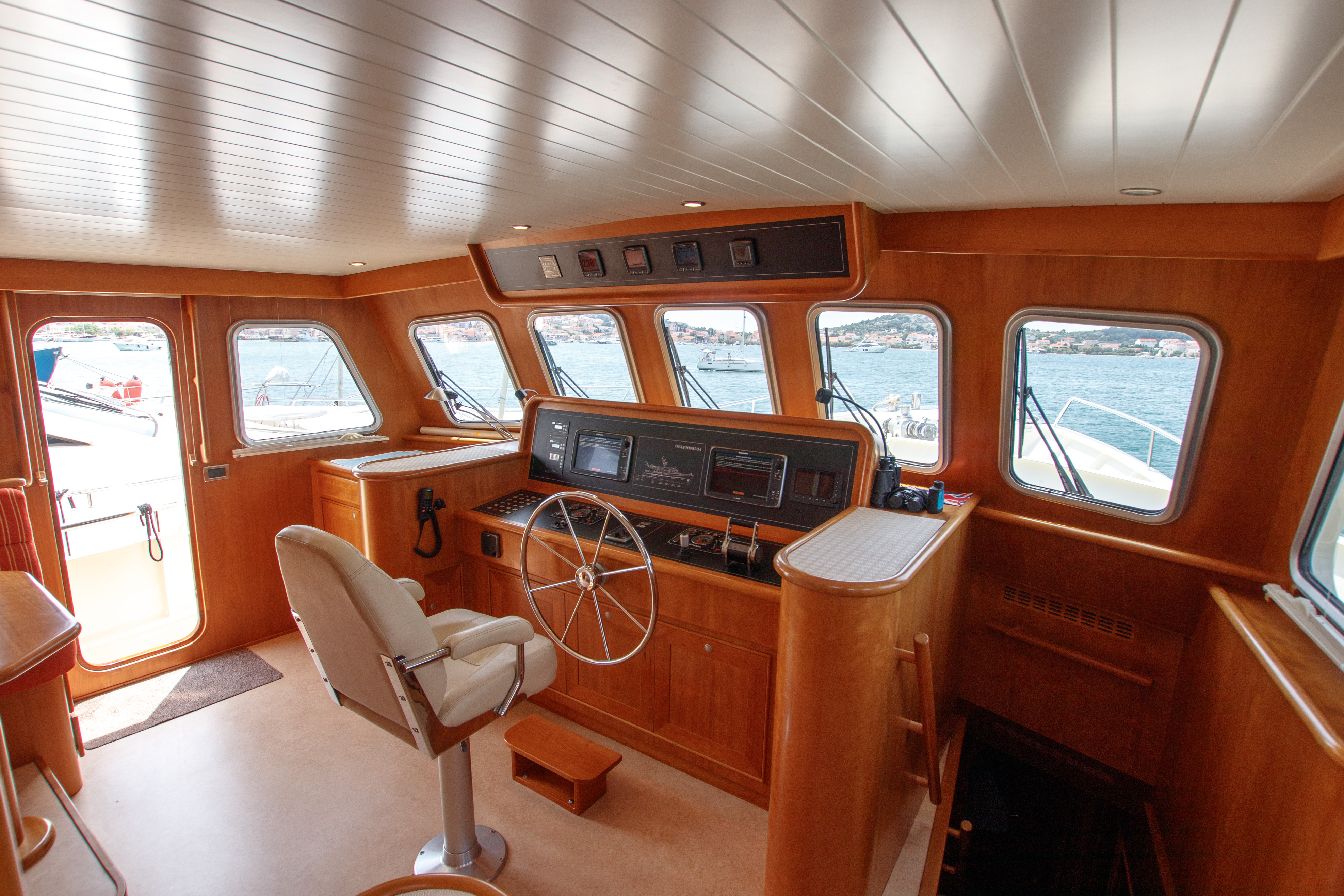

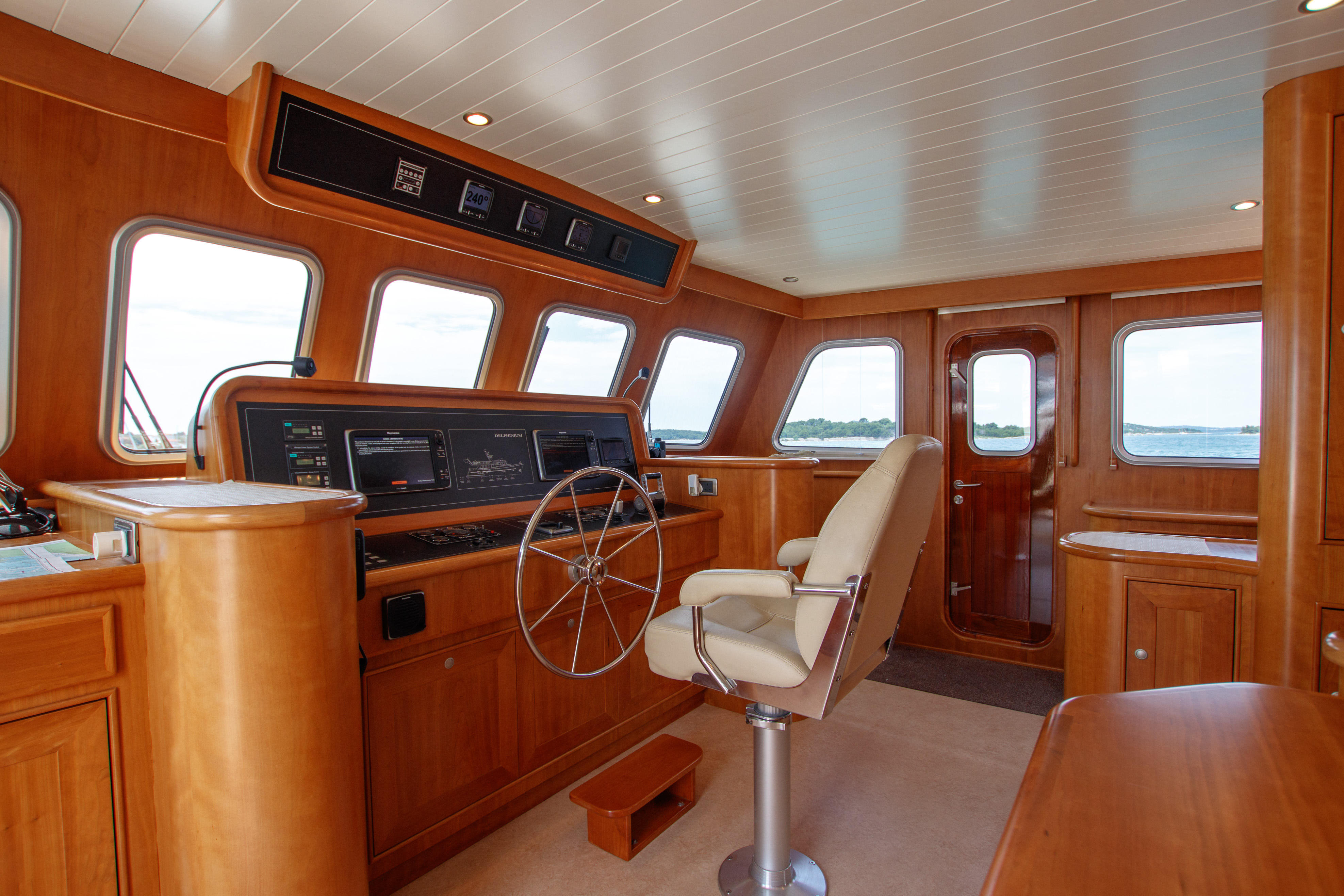

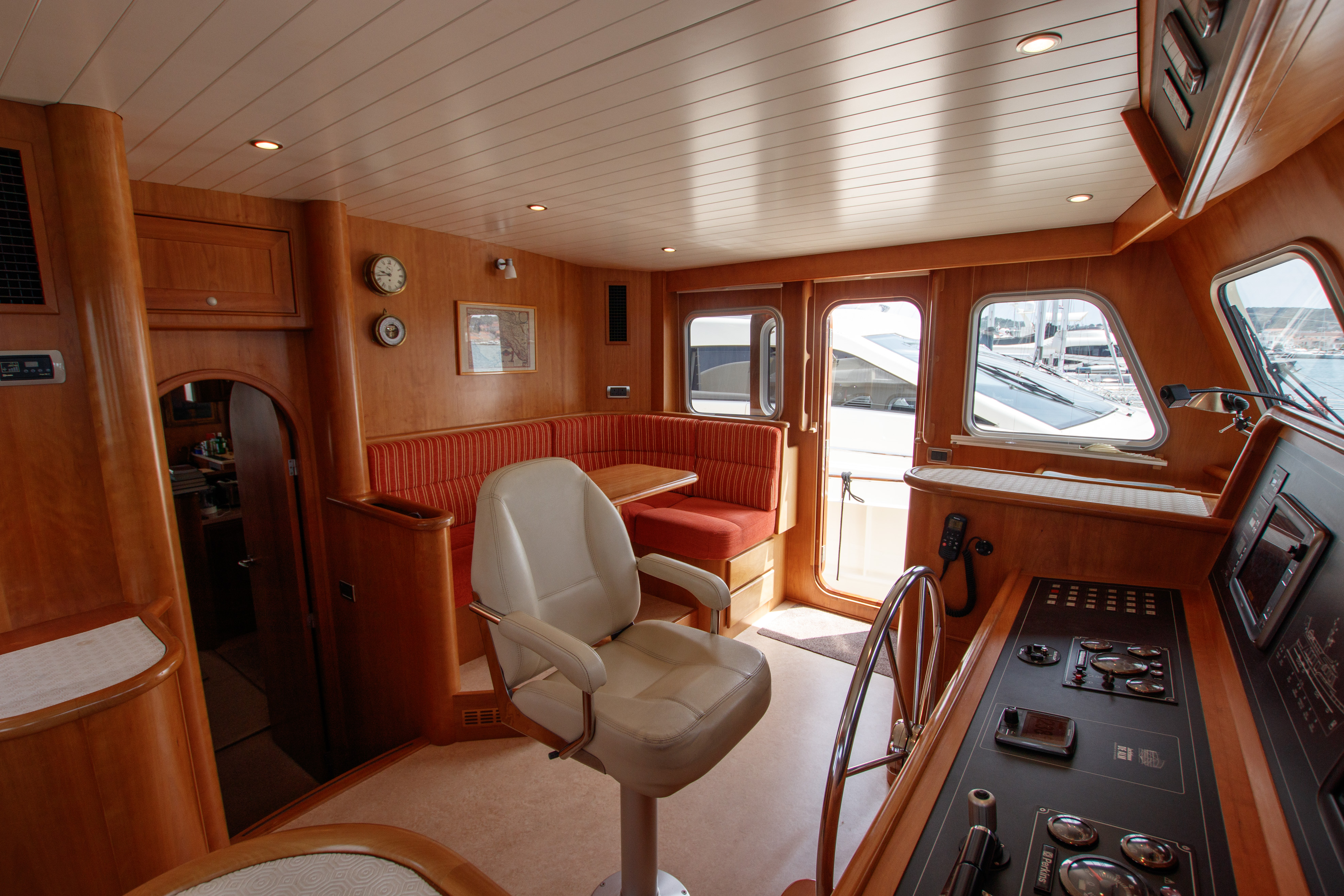

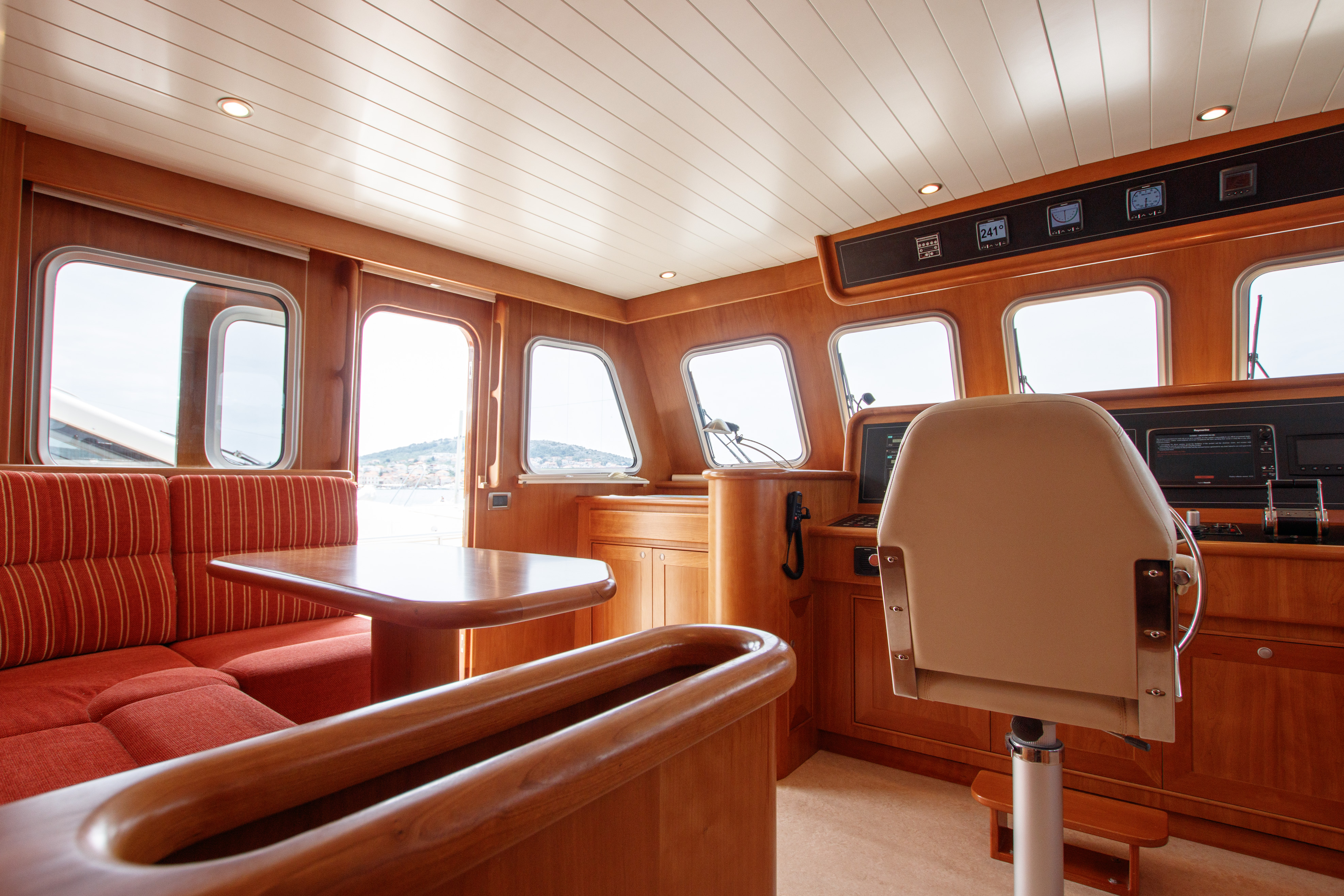

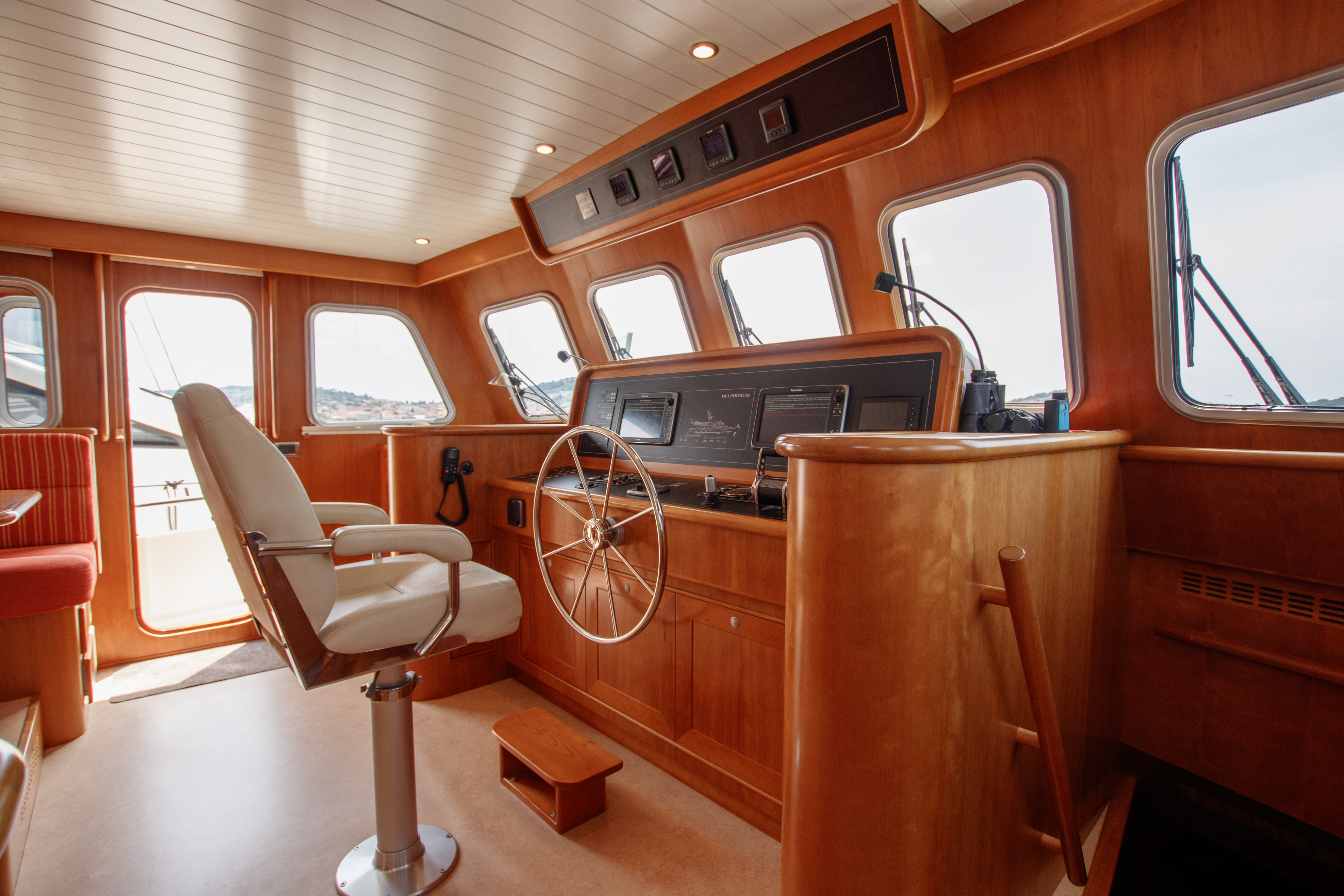

Inside helm position: yes

Outside helm position: hydraulic

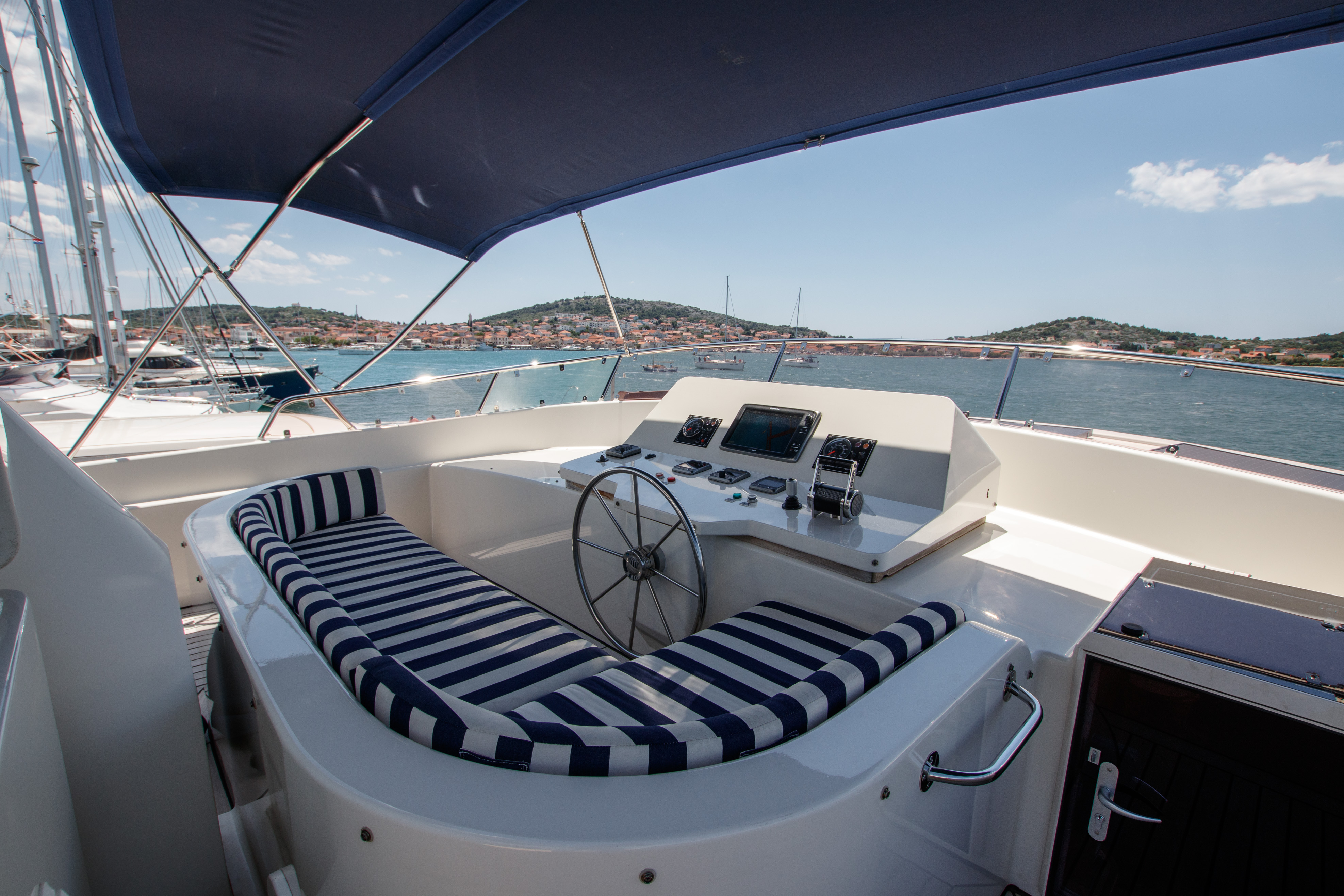

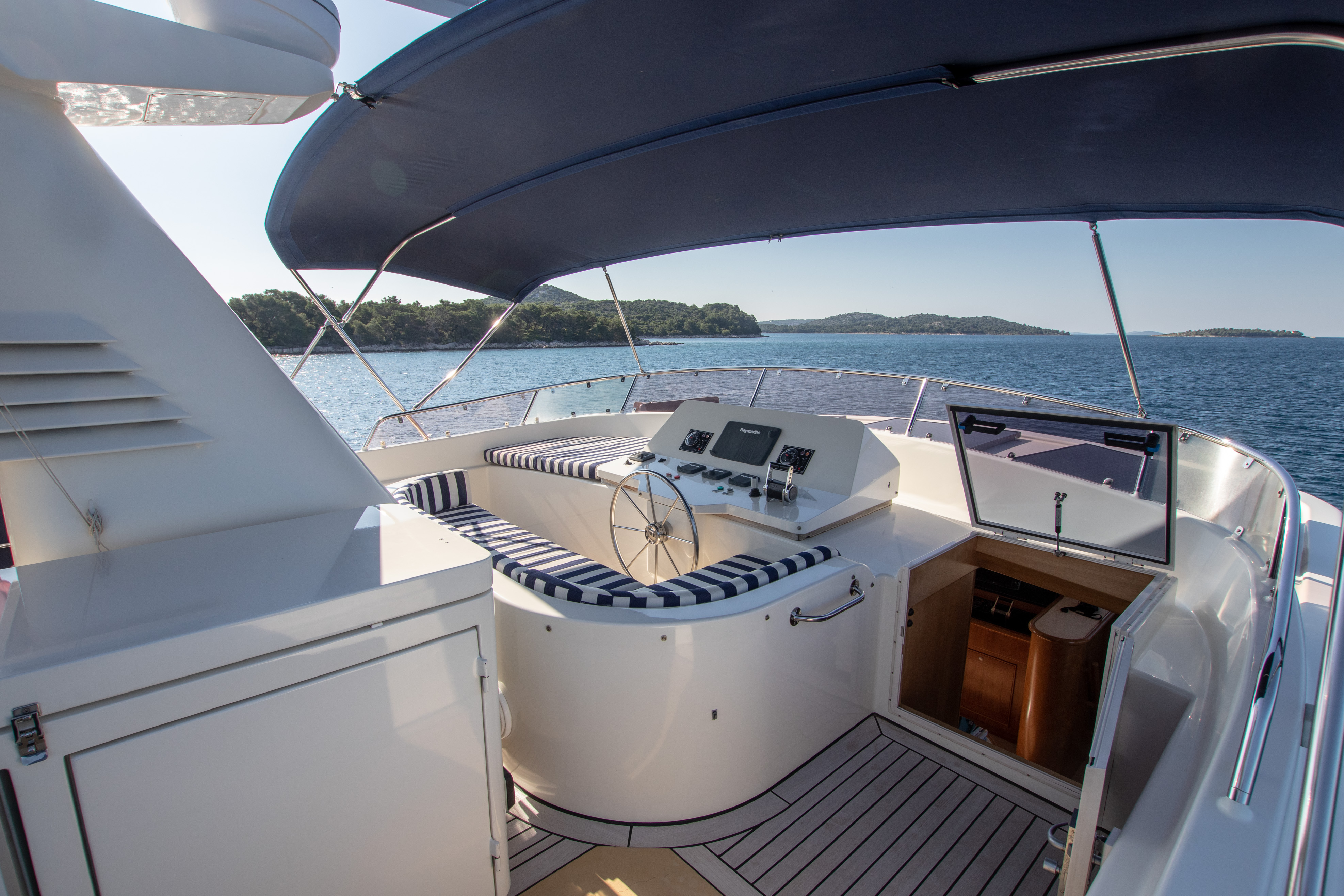

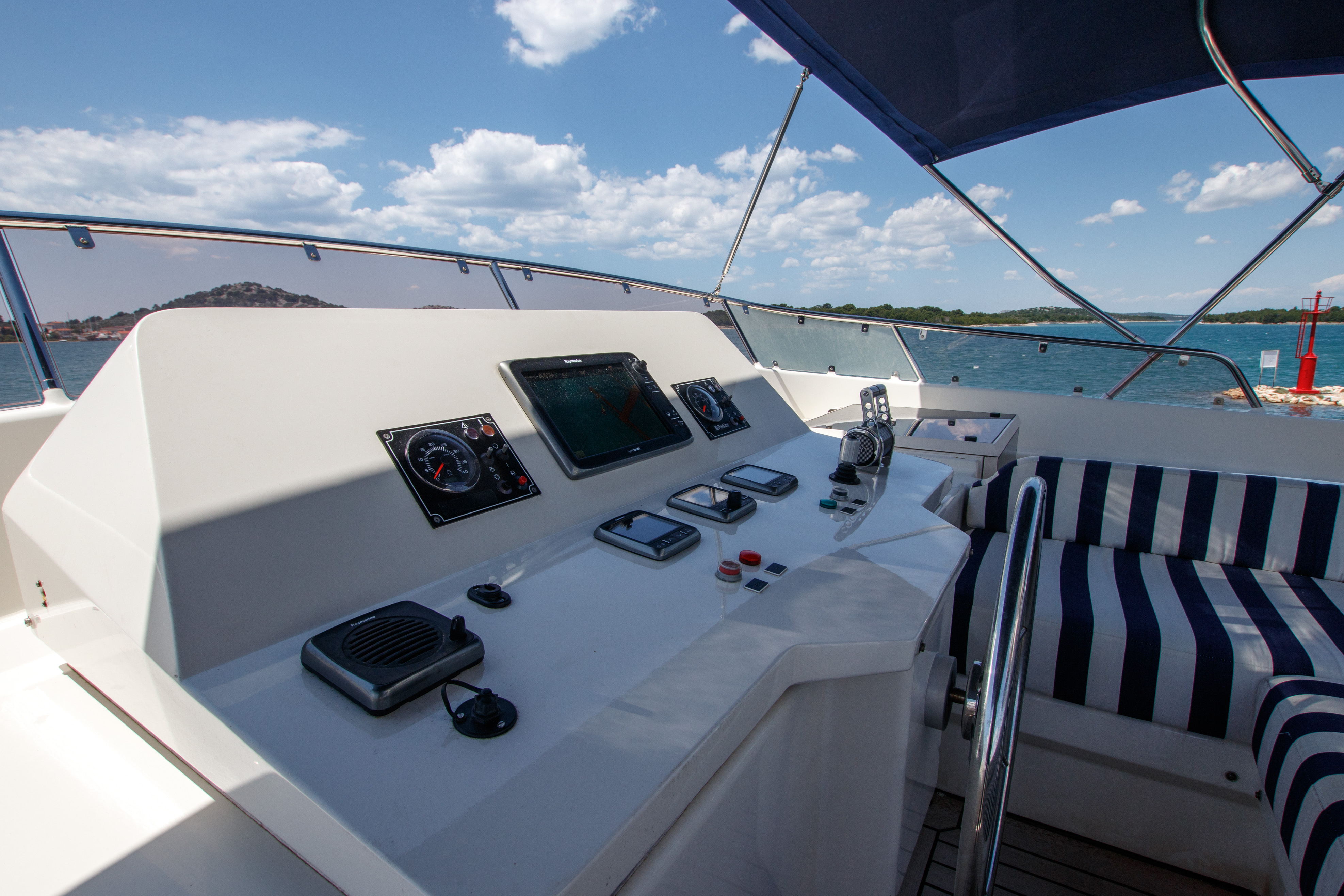

Flybridge helm position: yes

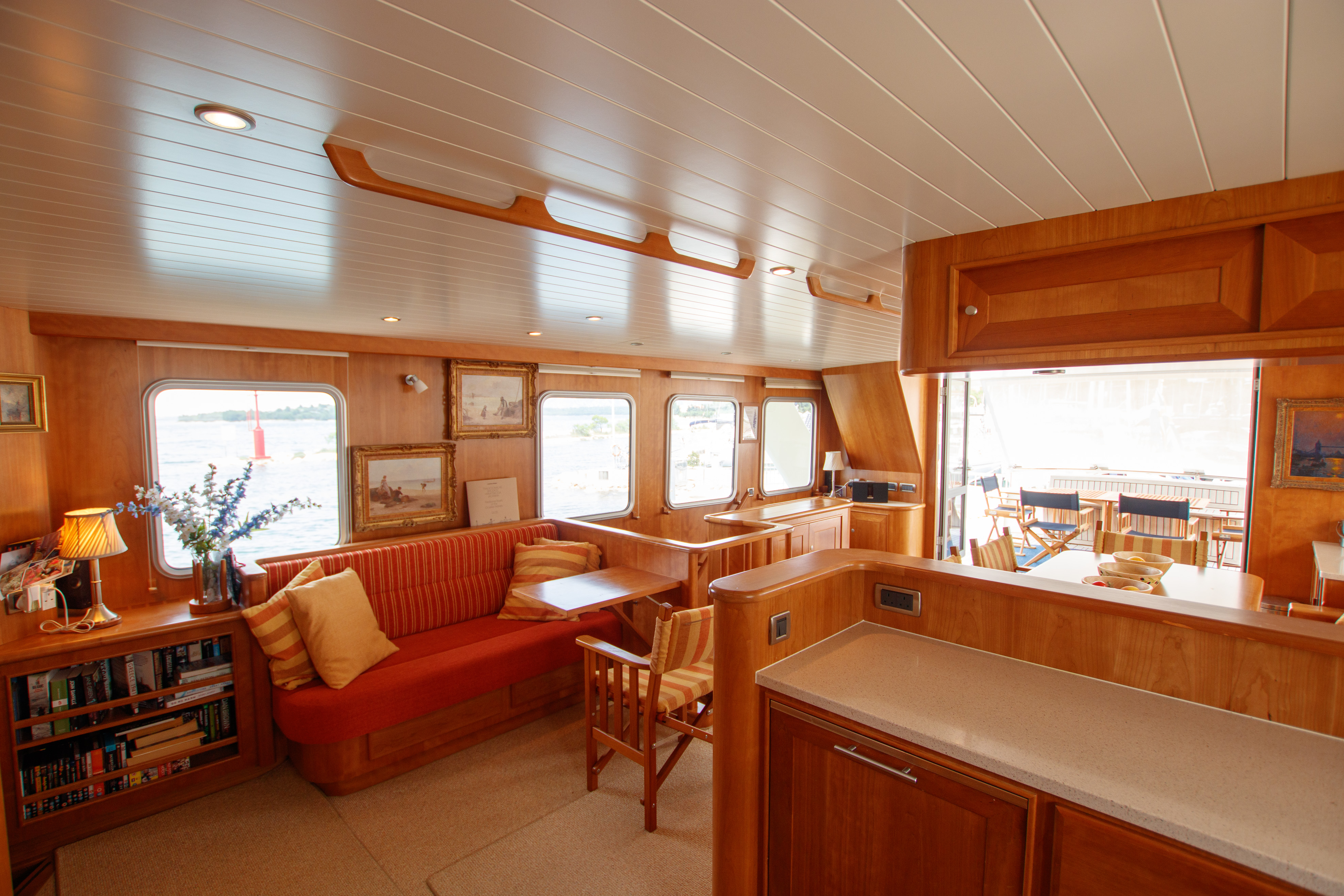

LAY OUT

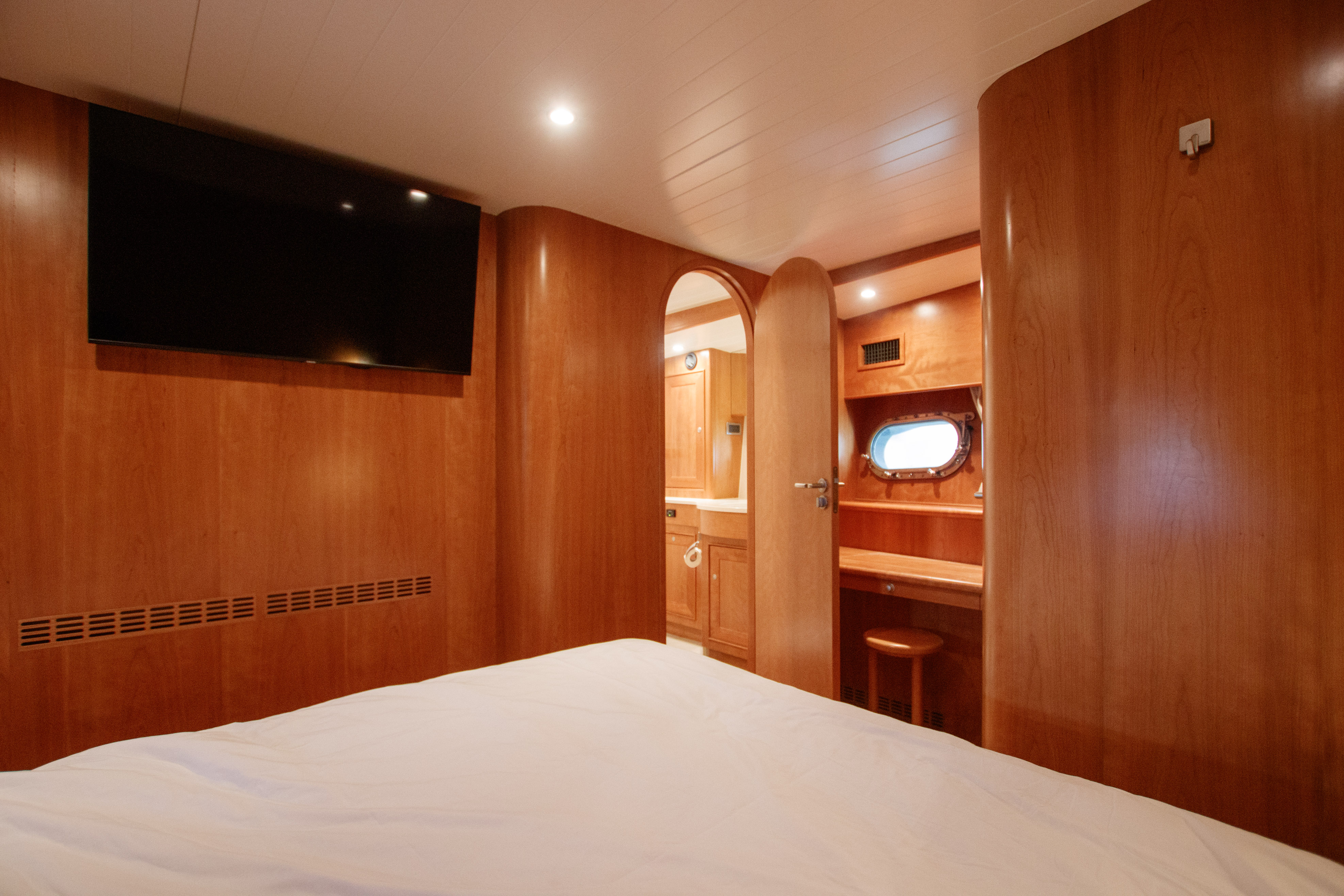

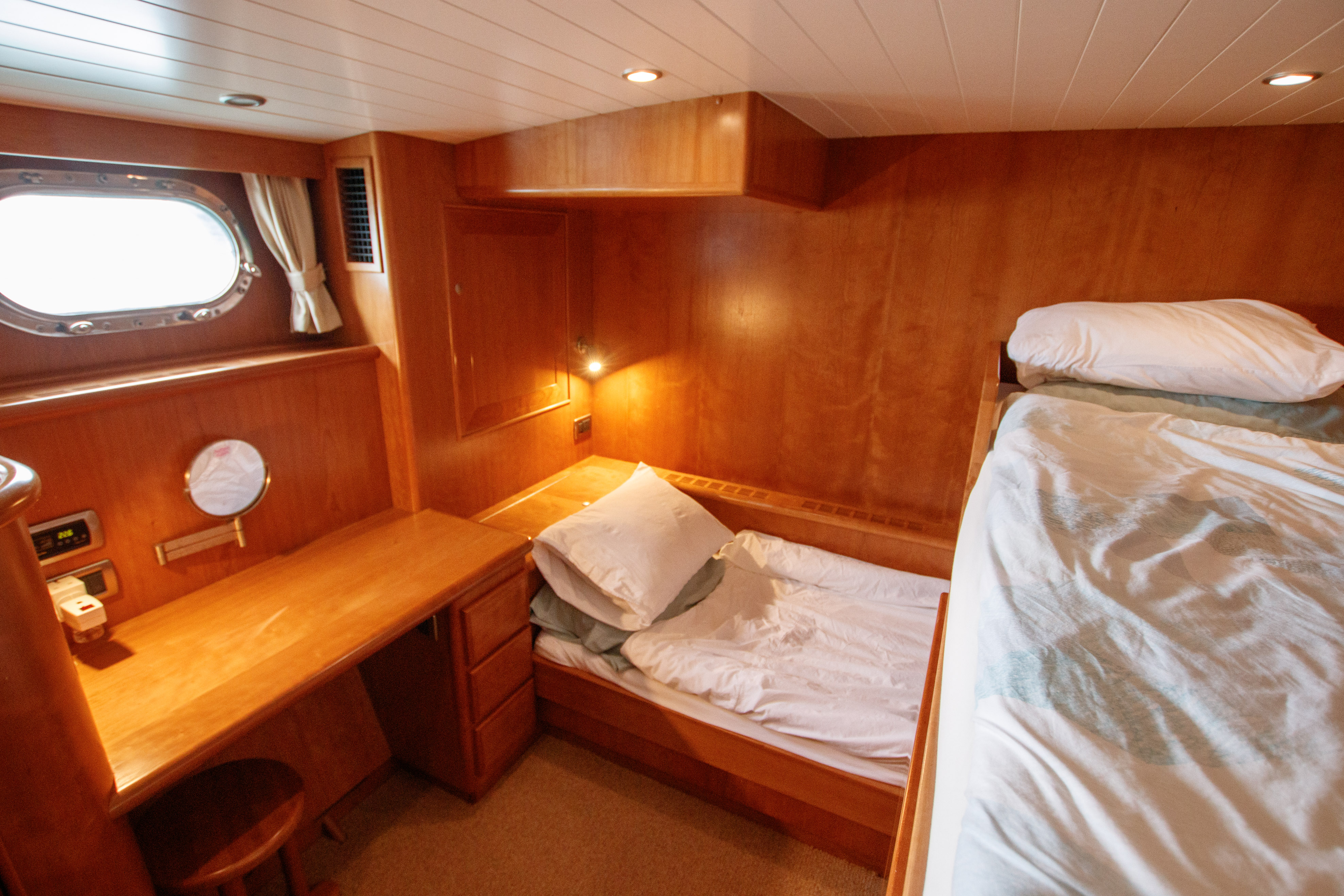

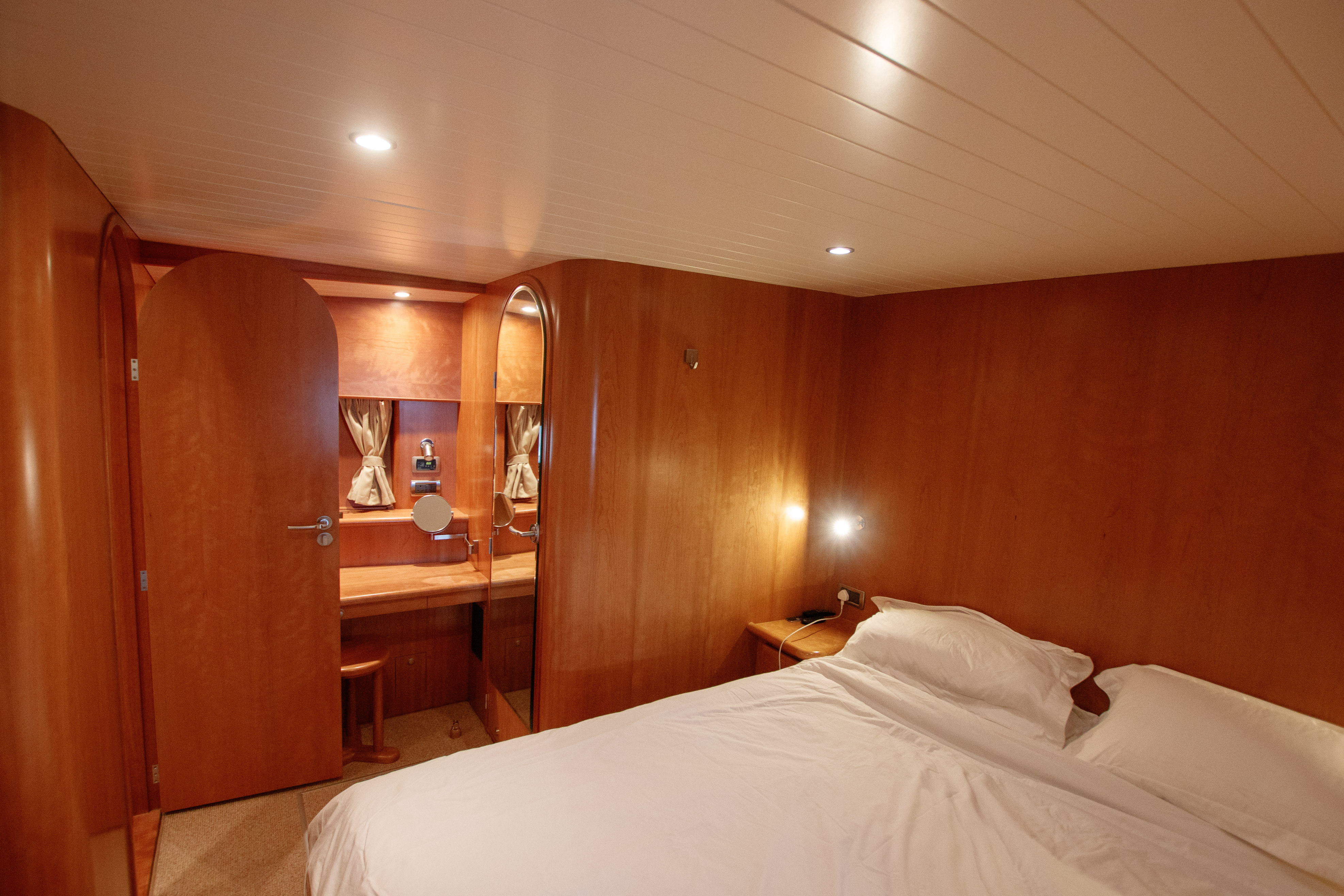

Cabins: 4

Berths: 8

Crew cabin: 1

Crew berths: 2

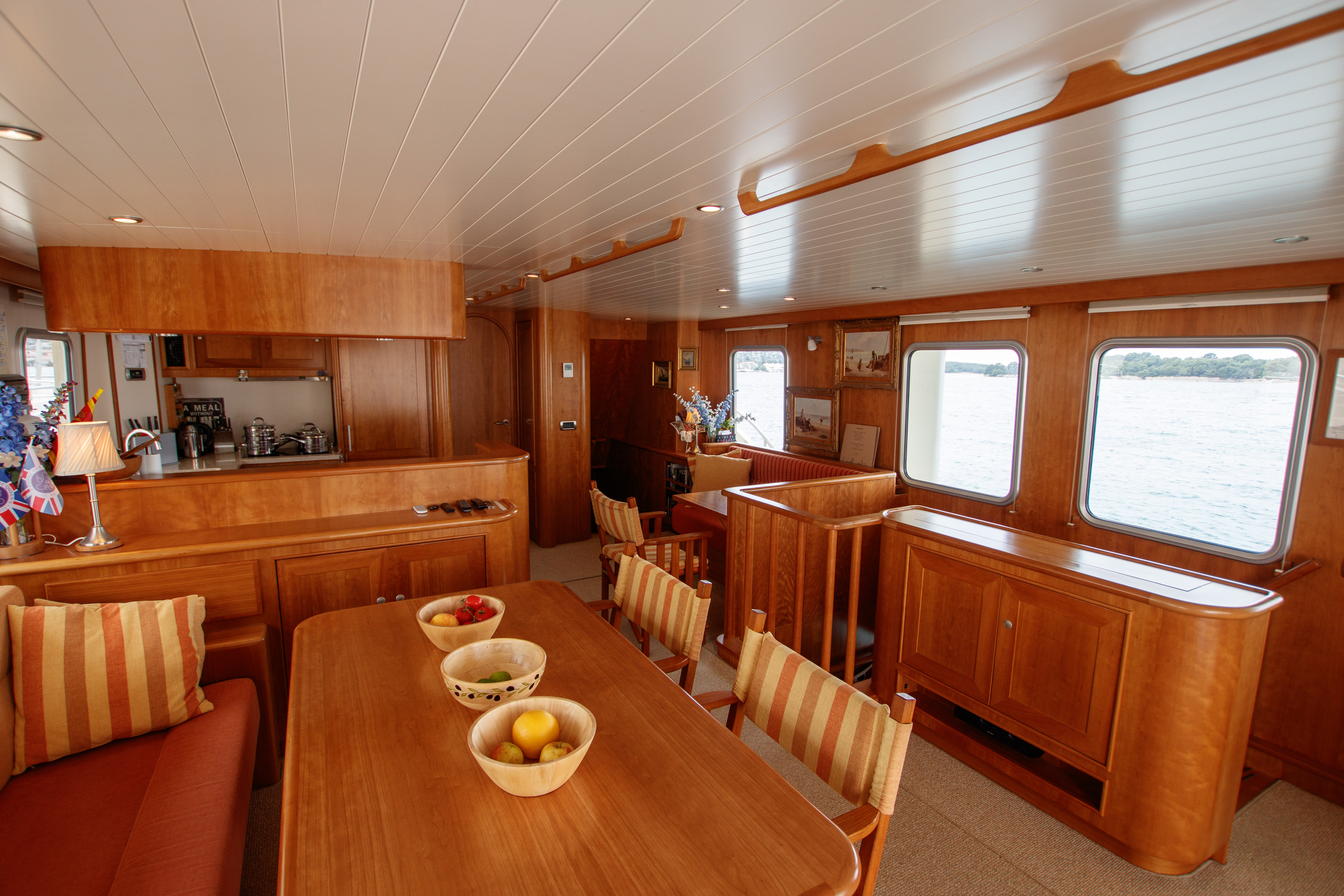

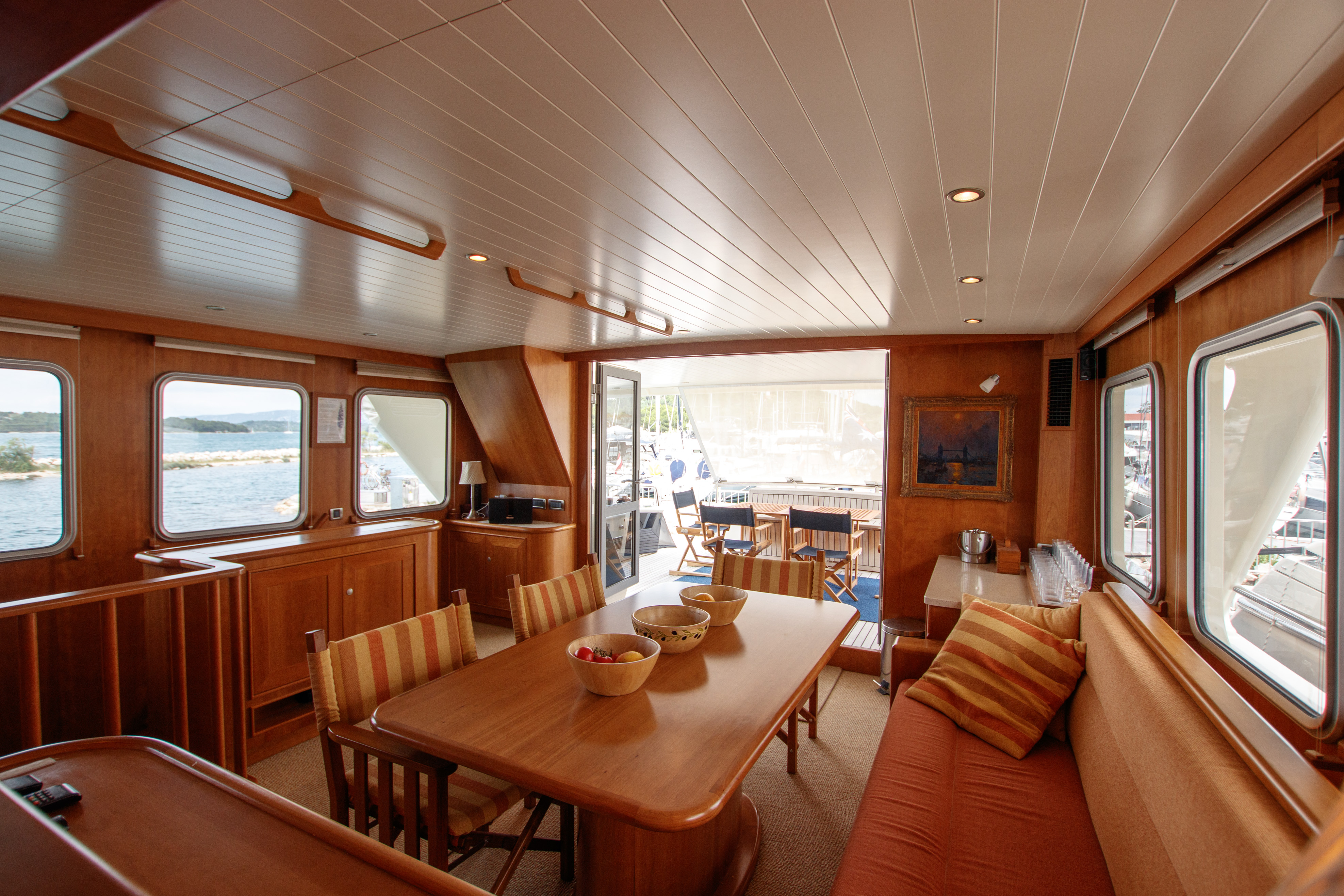

Interior: cherry

Floor: carpet

Heating: central heating  Kabola Combi 50kw

Air-conditioning: single cycle airco Waeco

Opening door to aft deck

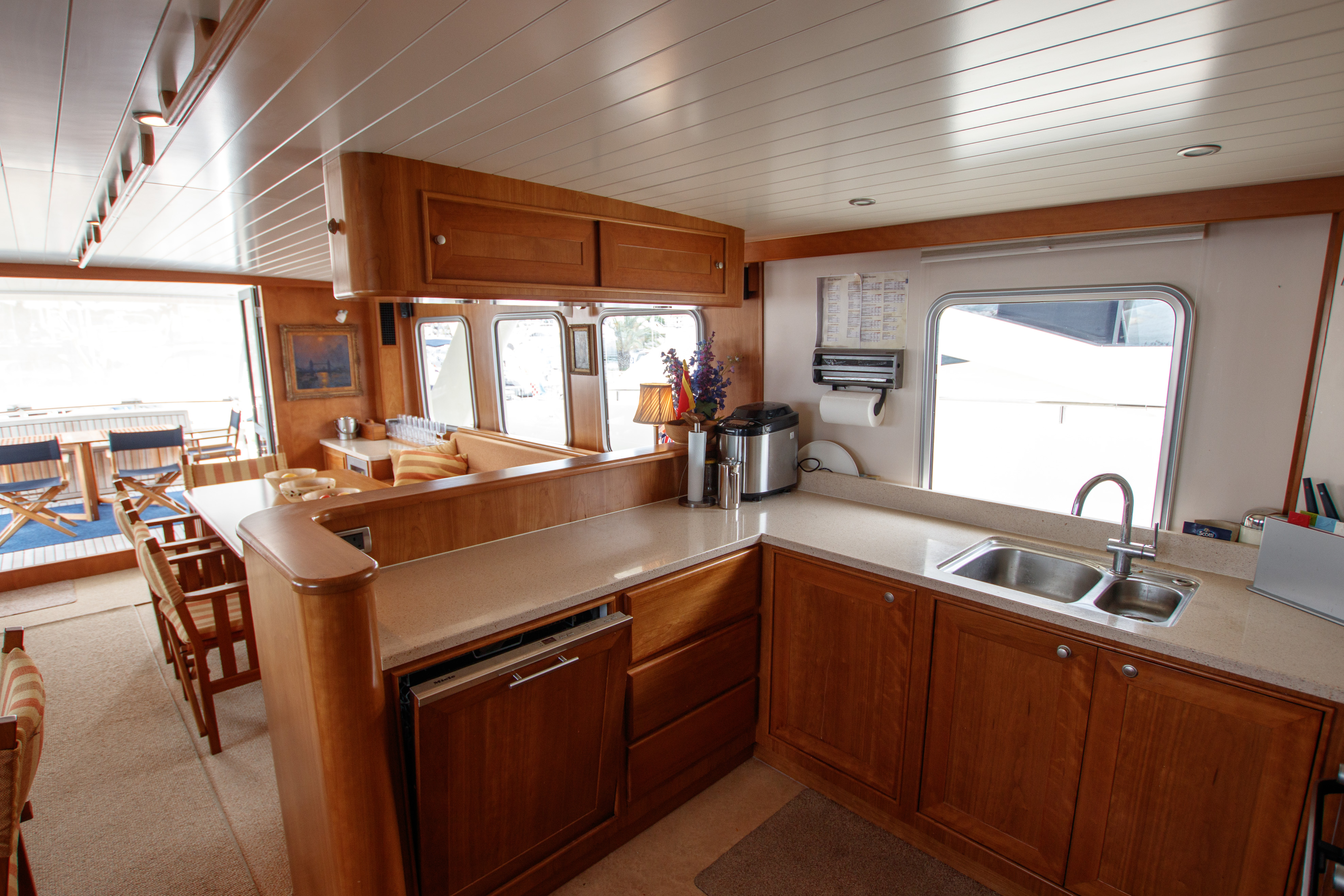

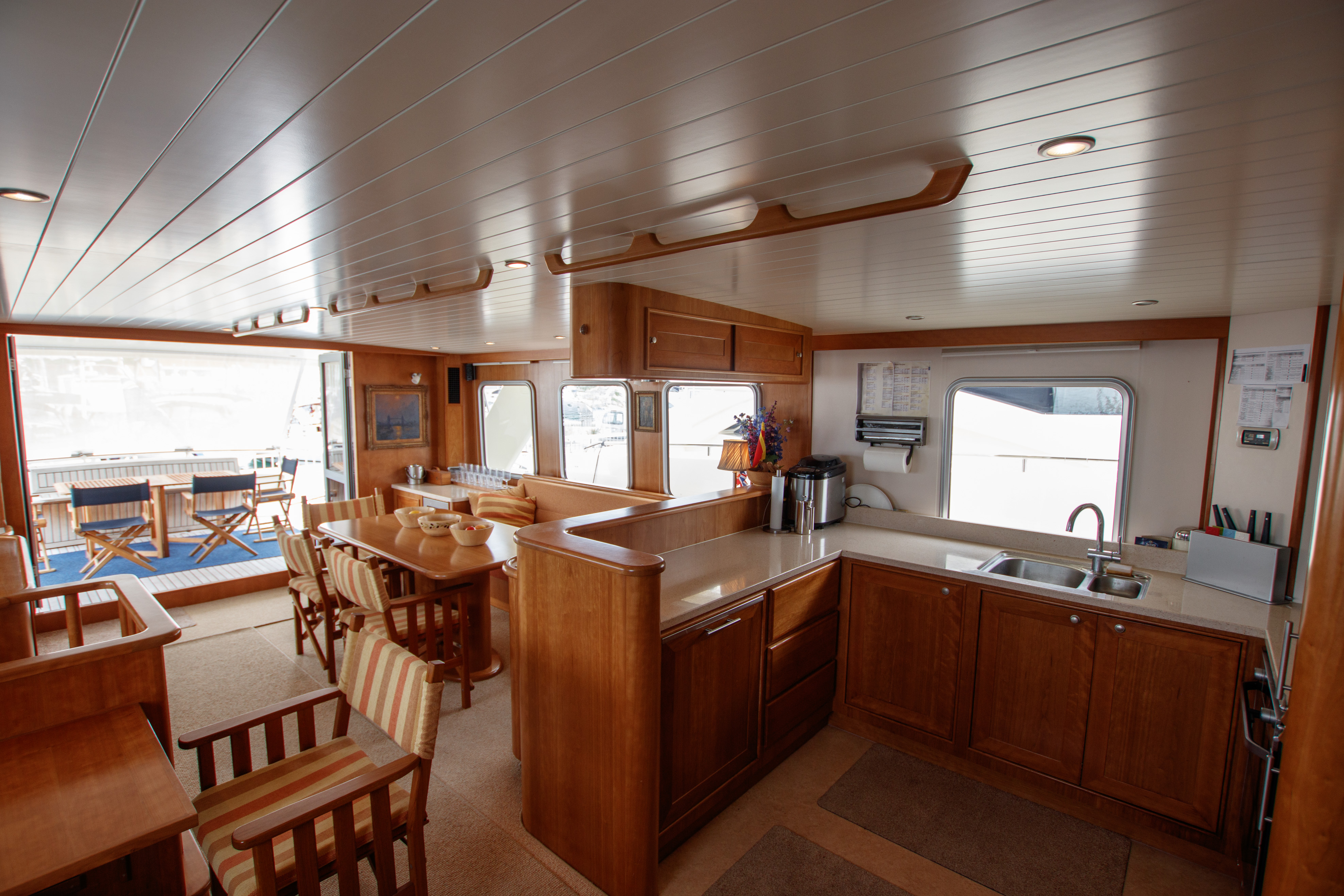

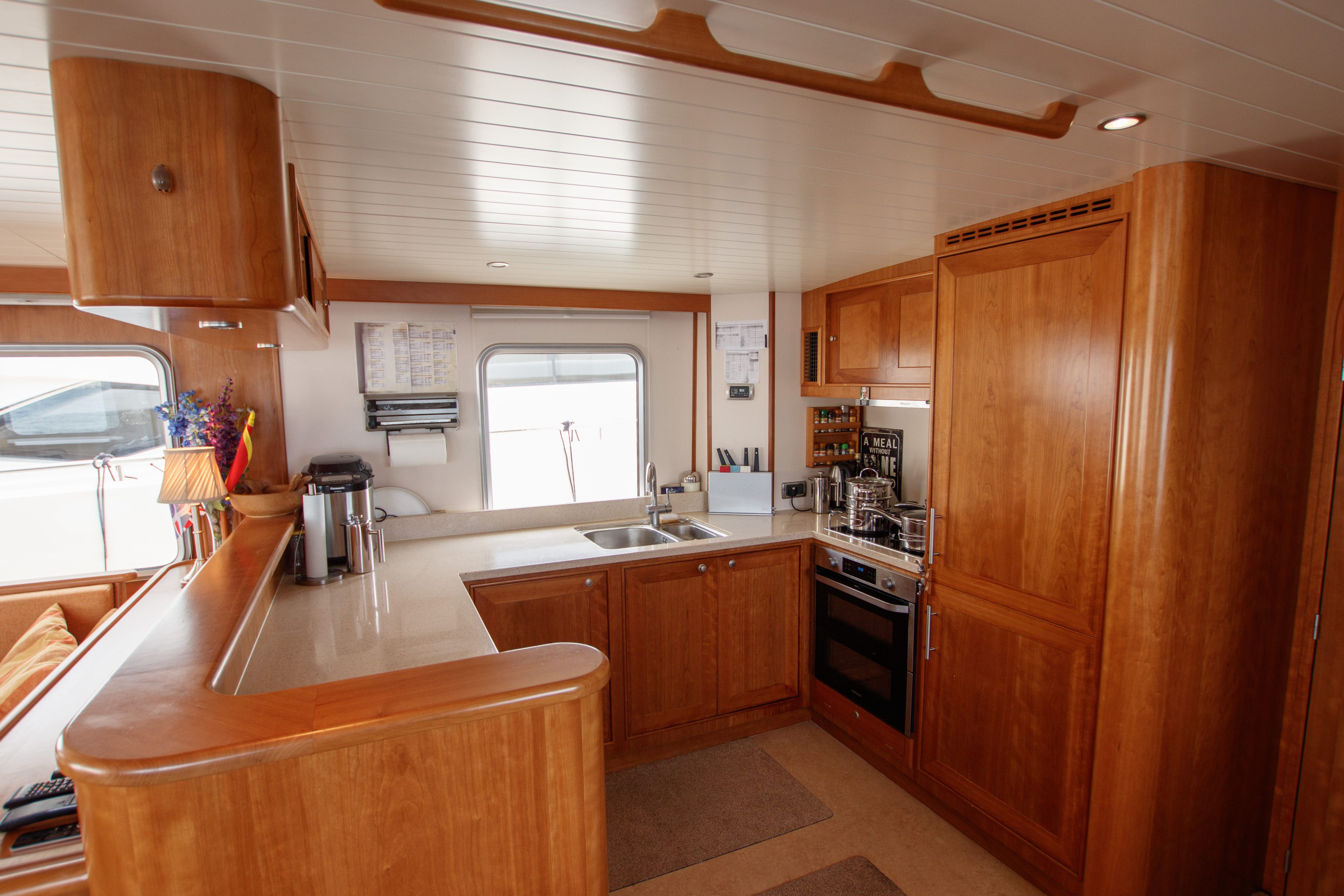

Sink: stainless steel
Cooker

induction Miele: 2015

Oven: Samsung Dual Compartment installed in 2021

Extractor: Miele 2015

Fridge: yes

Freezer: yes

Wine cooler: Miele

Hot water system: on central heating  Kabola + 70 liter electric boiler

Water pressure system: electrical  2 pumps

Dishwasher: Miele 2015

Ice maker: on the flybridge

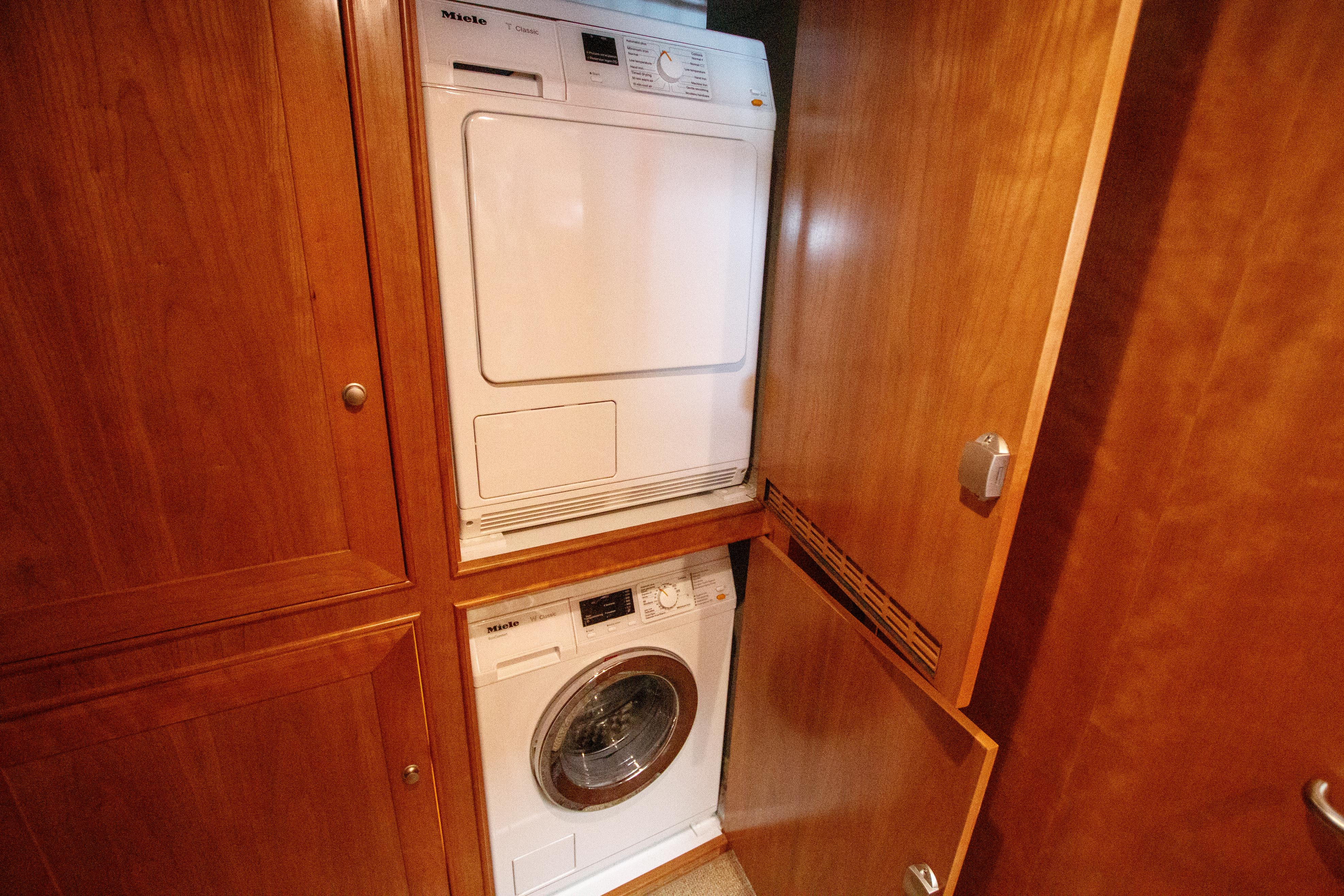

Washing machine: Miele 2015

Dryer: Miele 2015

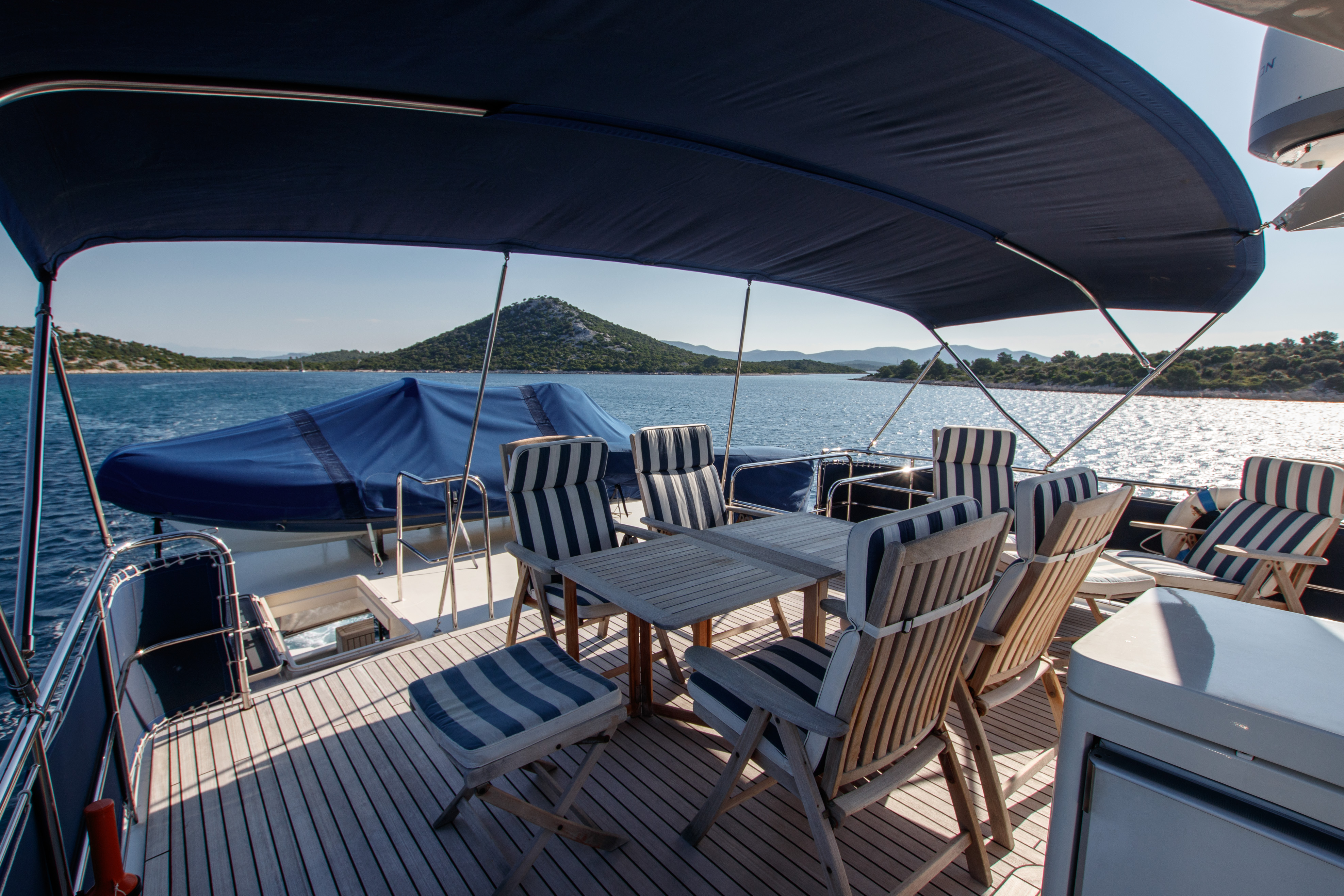

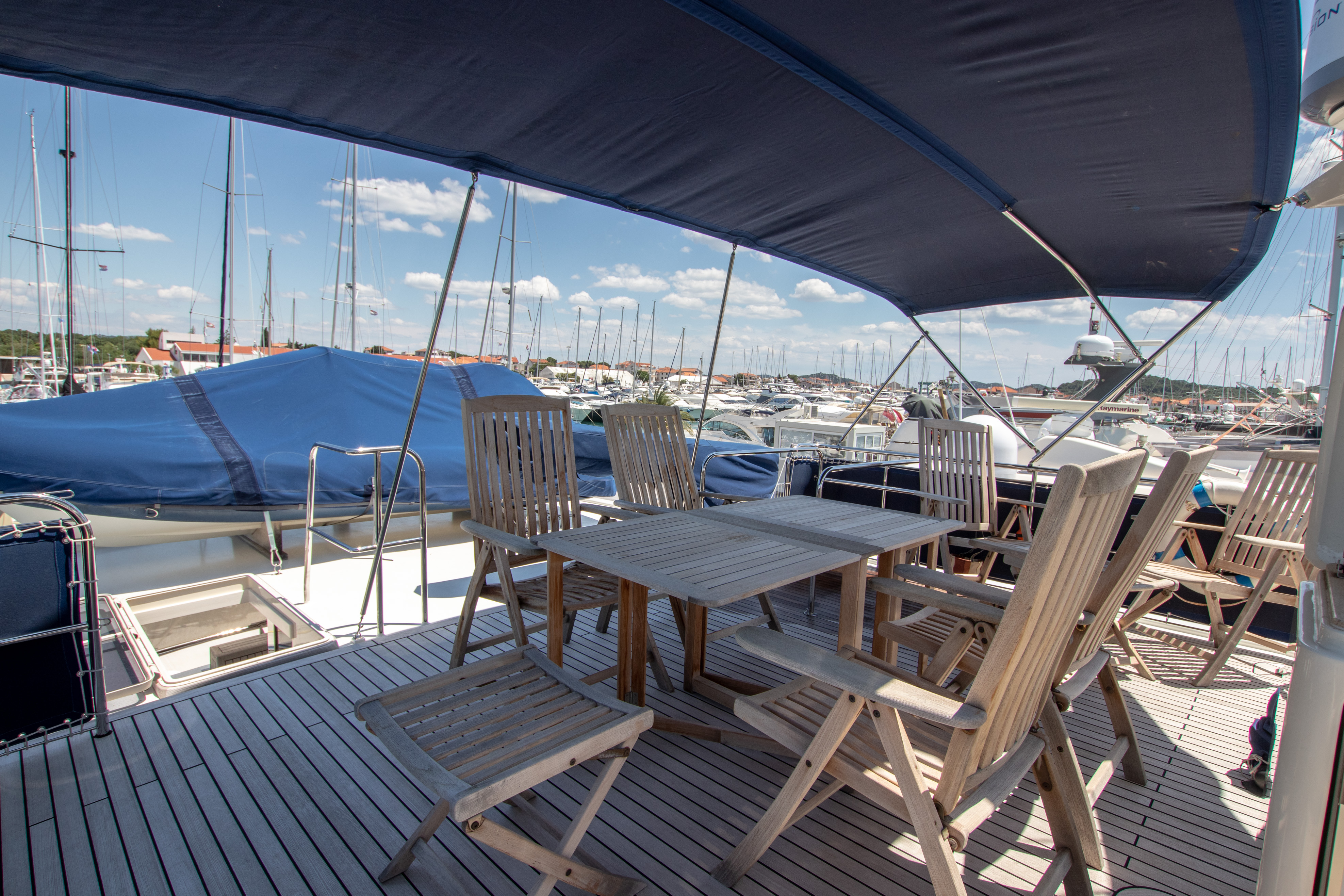

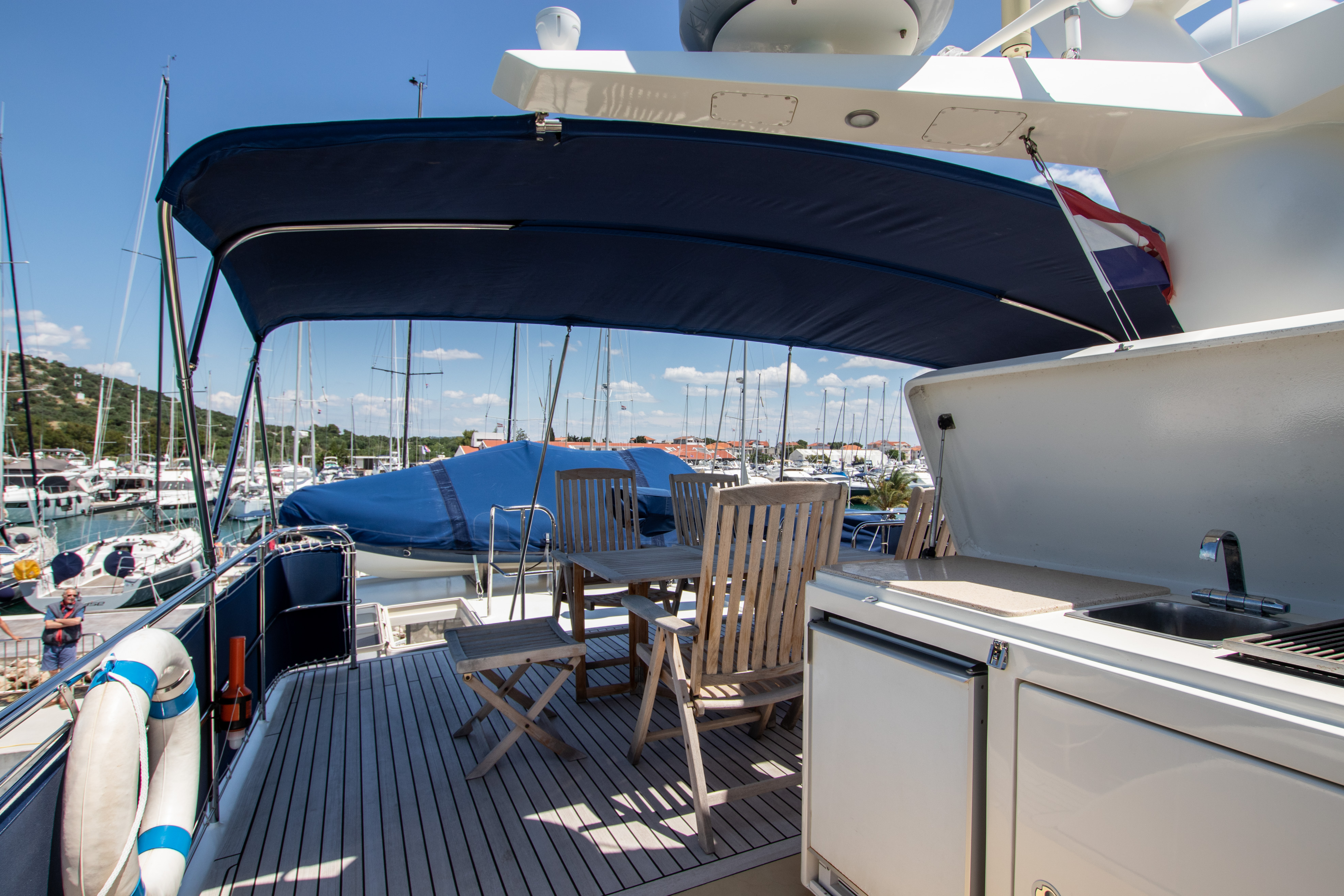

Flybridge: yes



EQUIPMENT

Bimini: 2x

Sun awning: 1x

Cockpit cushions: yes

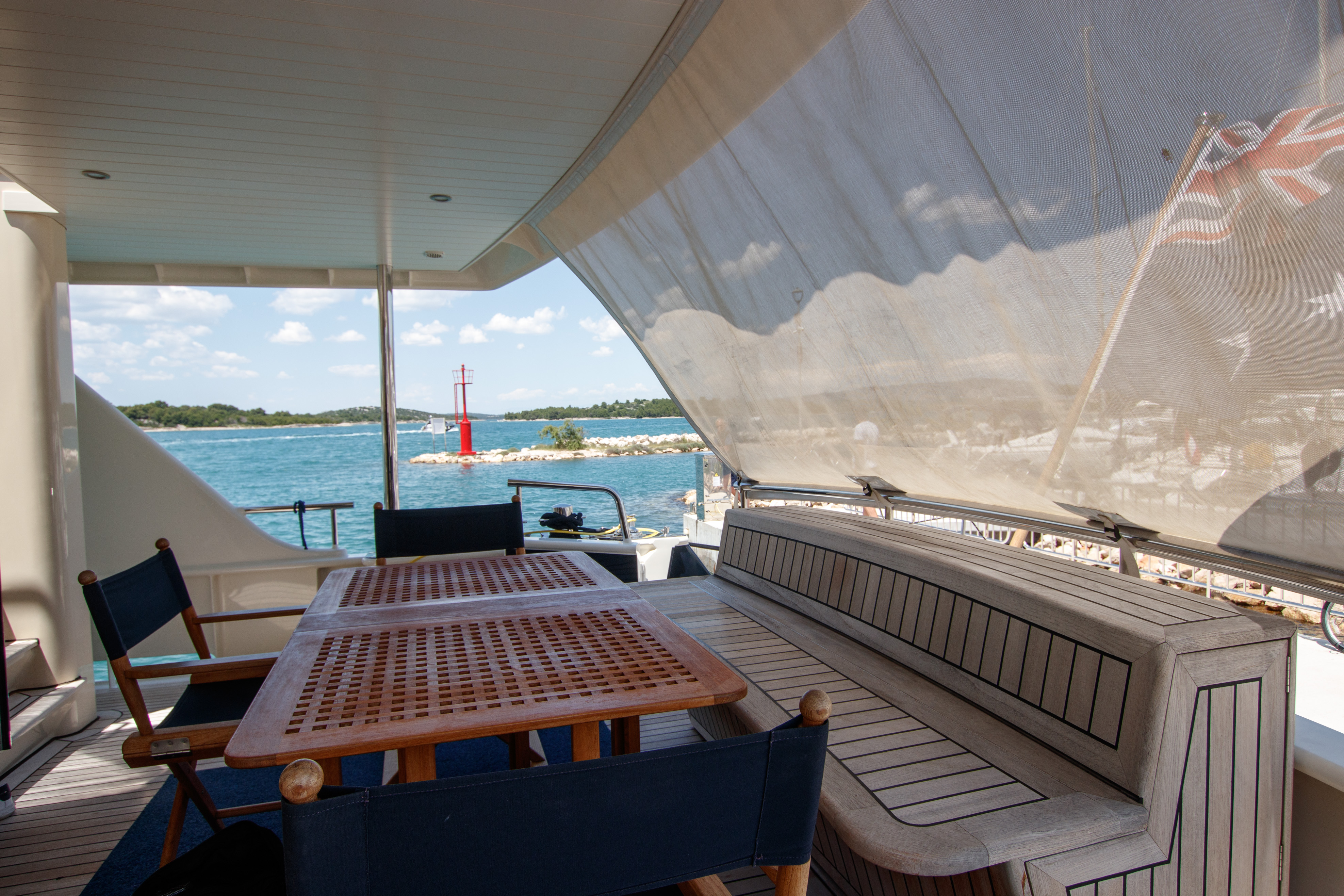

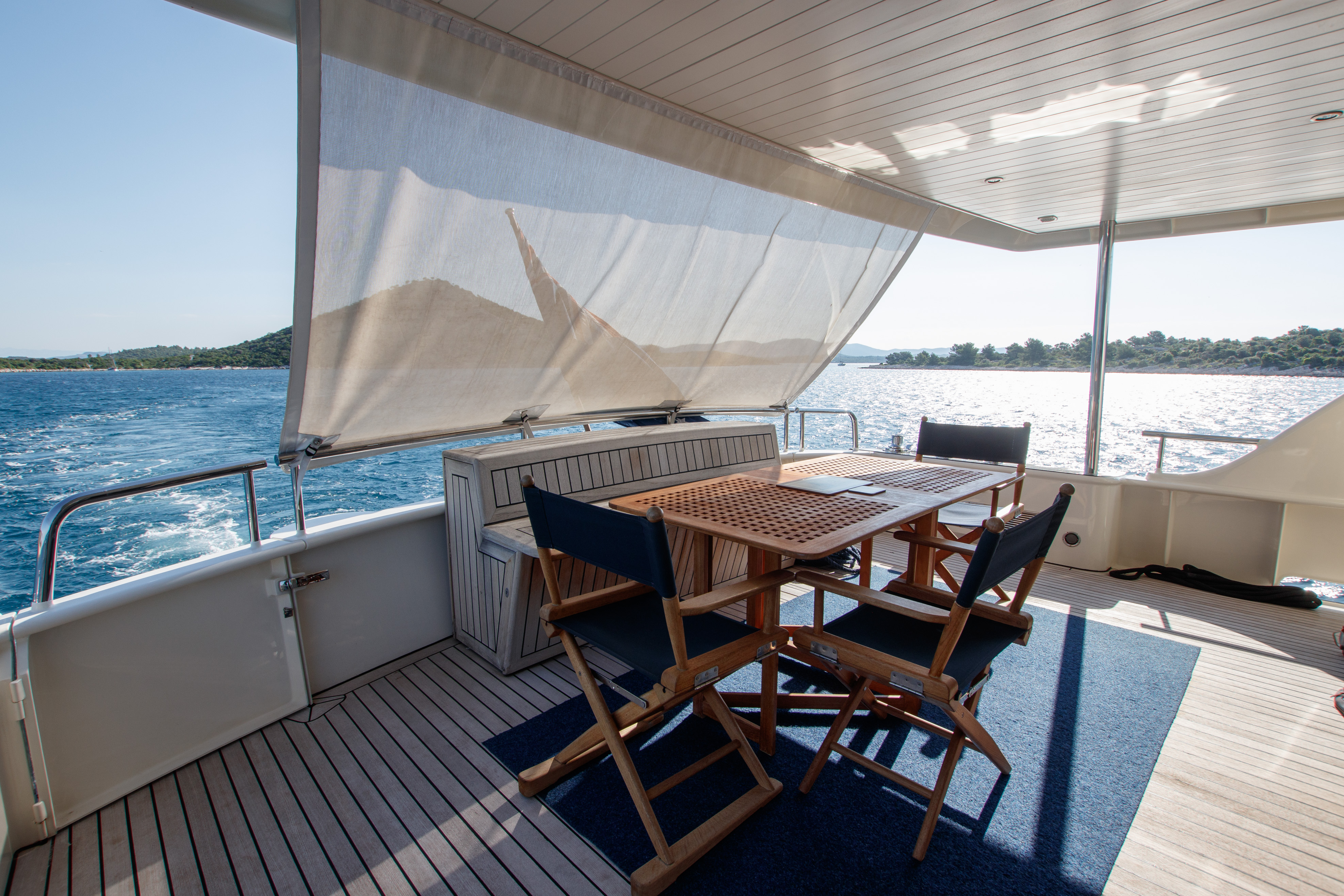

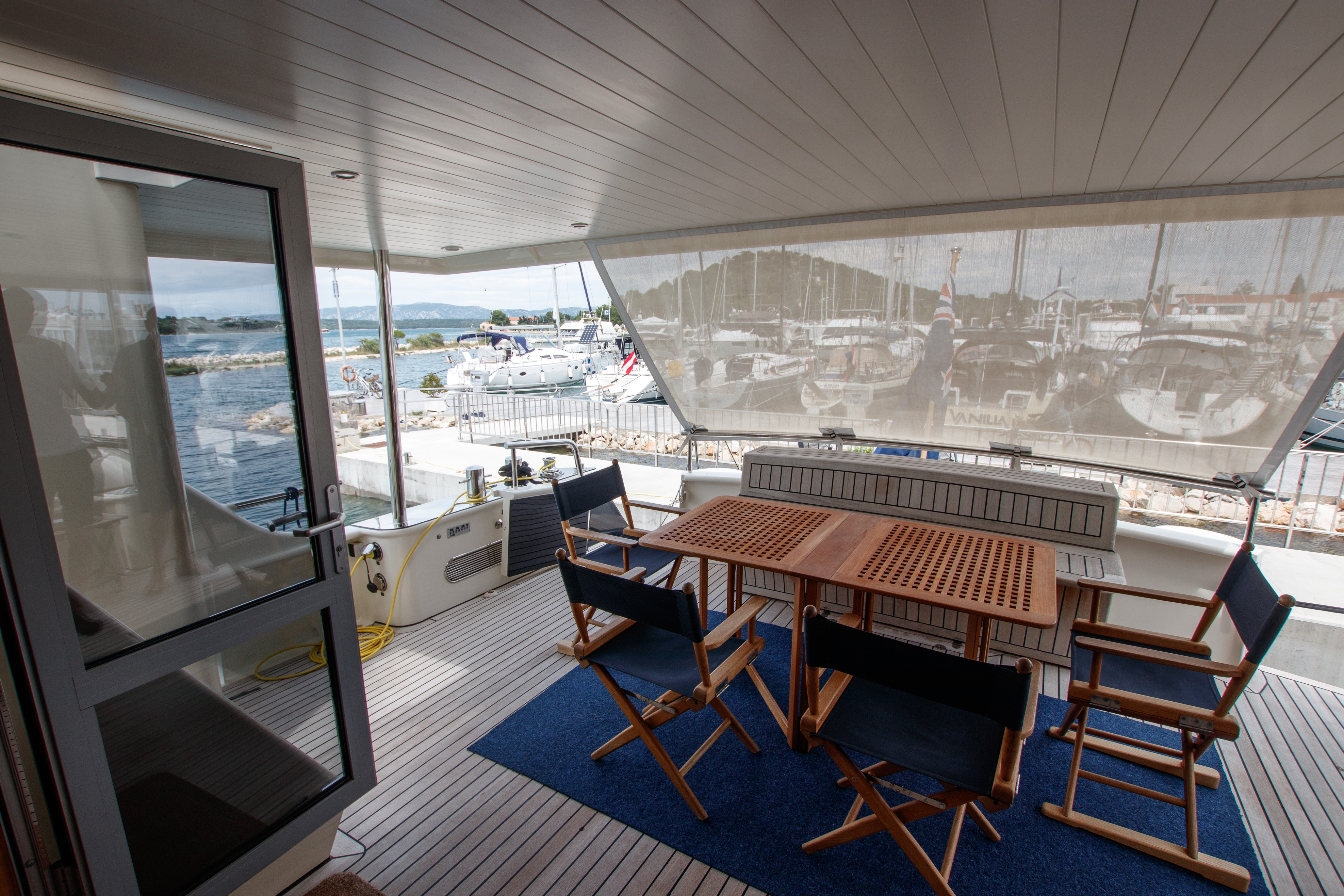

Cockpit table: teak

Cockpit chairs: 4x teak director chairs

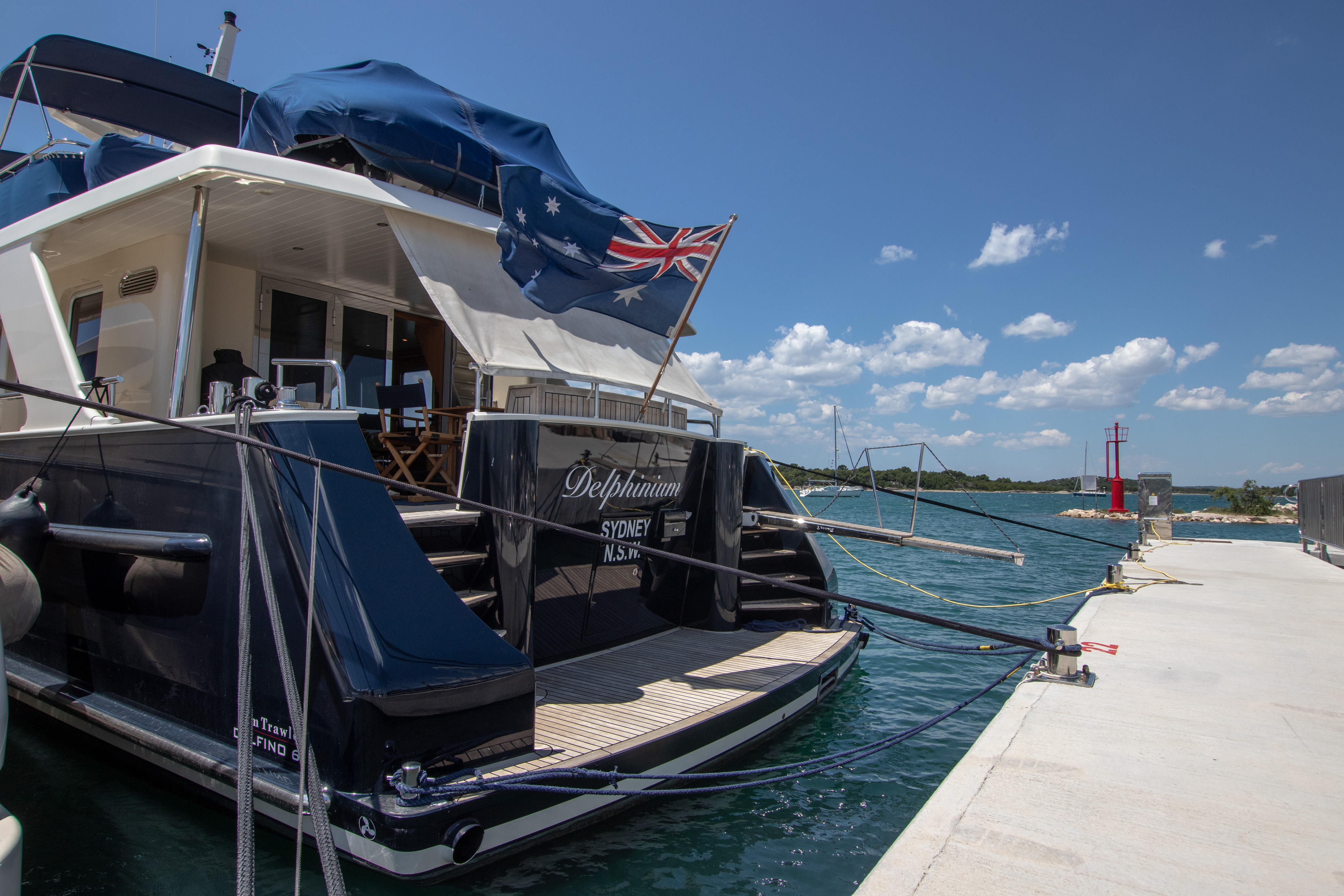

Bathing platform: yes

Boarding ladder: yes

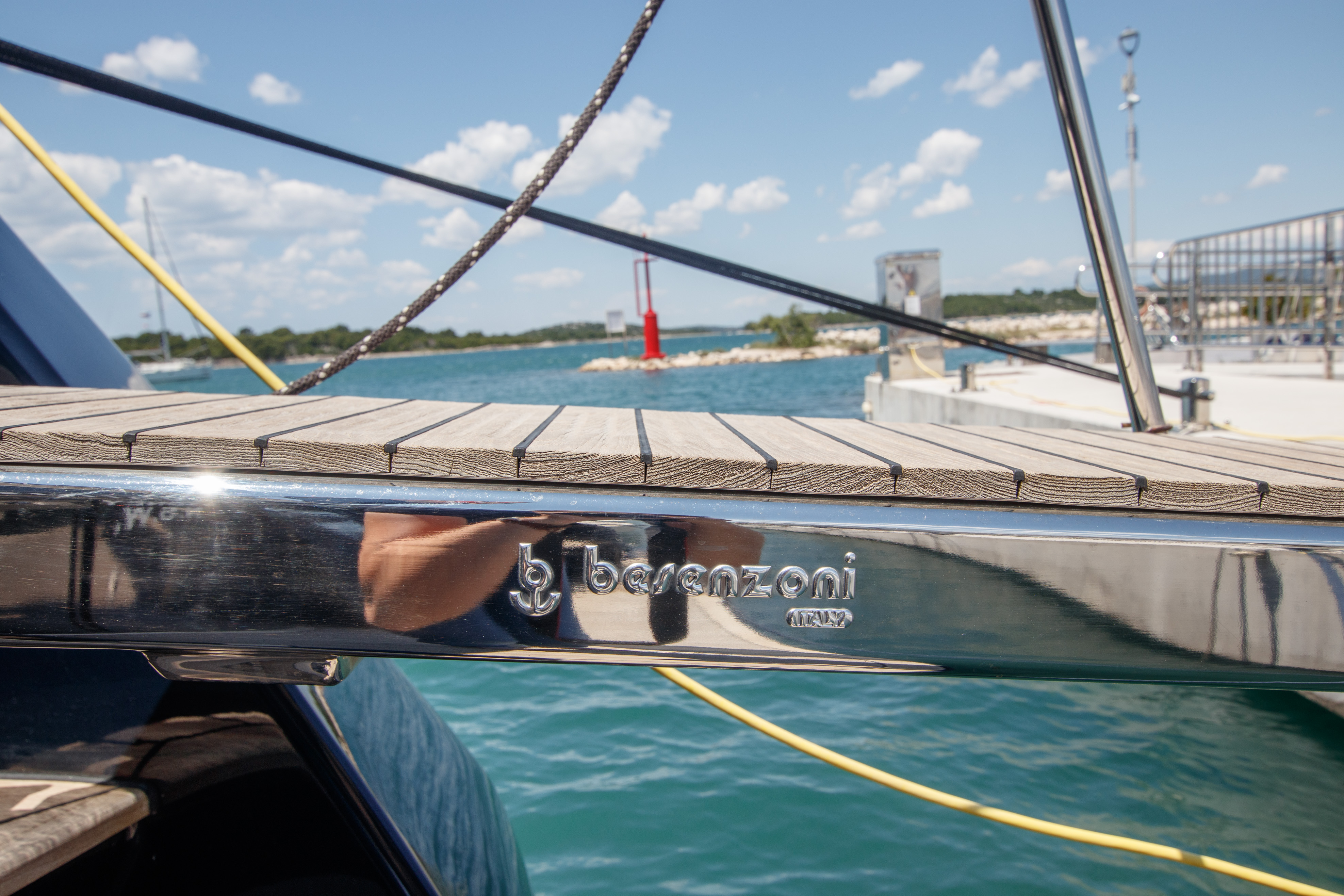

Gangway: hydraulic Brenzoni

Deck shower: yes

Anchor: Danforth  Stainless steel

Anchor chain: 80m 13mm DIN766

Anchor 2: Danforth  Stainless steel

Anchor chain: 80m 13mm DIN766

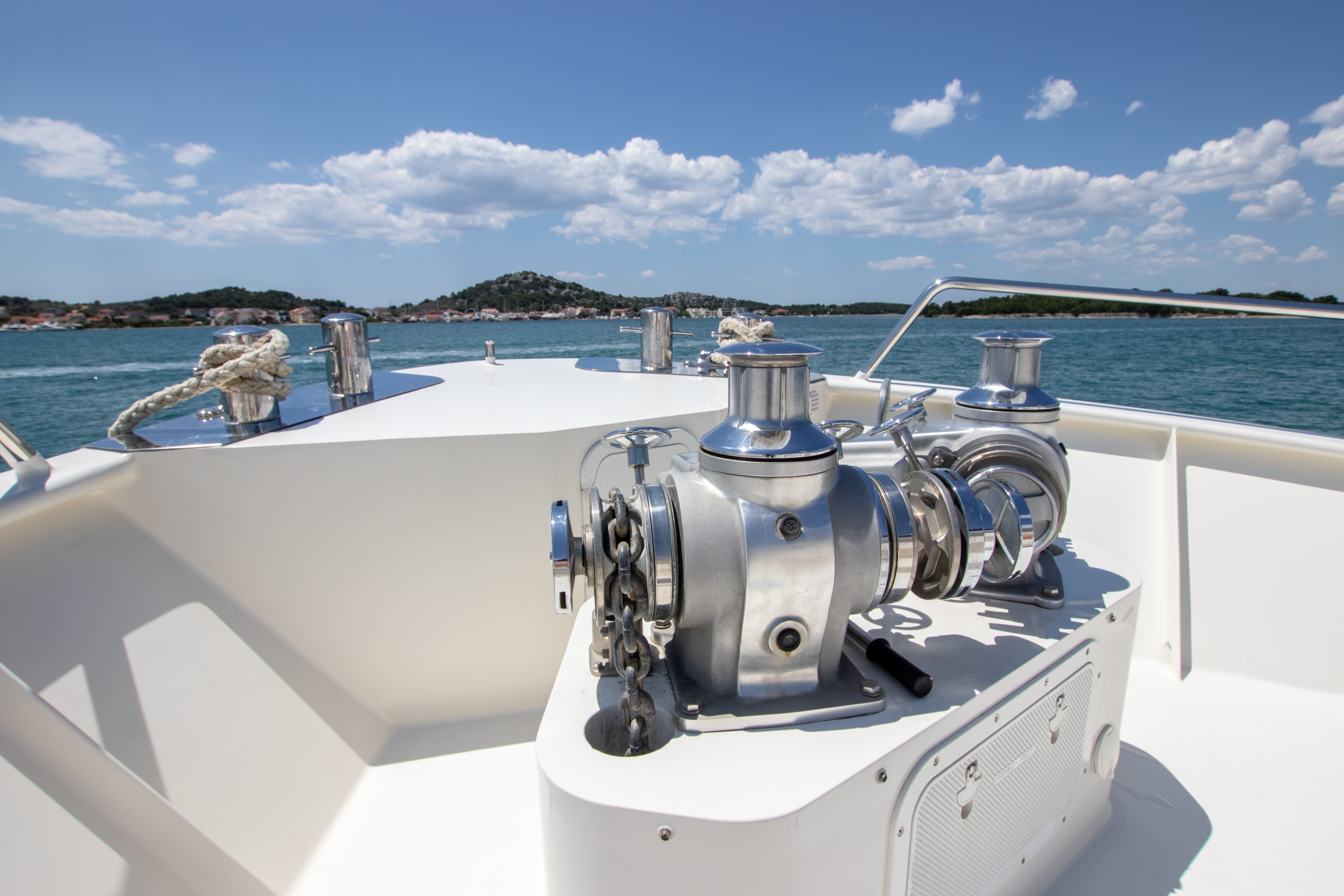

Windlass: hydraulic

Windlass aft: hydraulic  2x

Deck wash: 2x

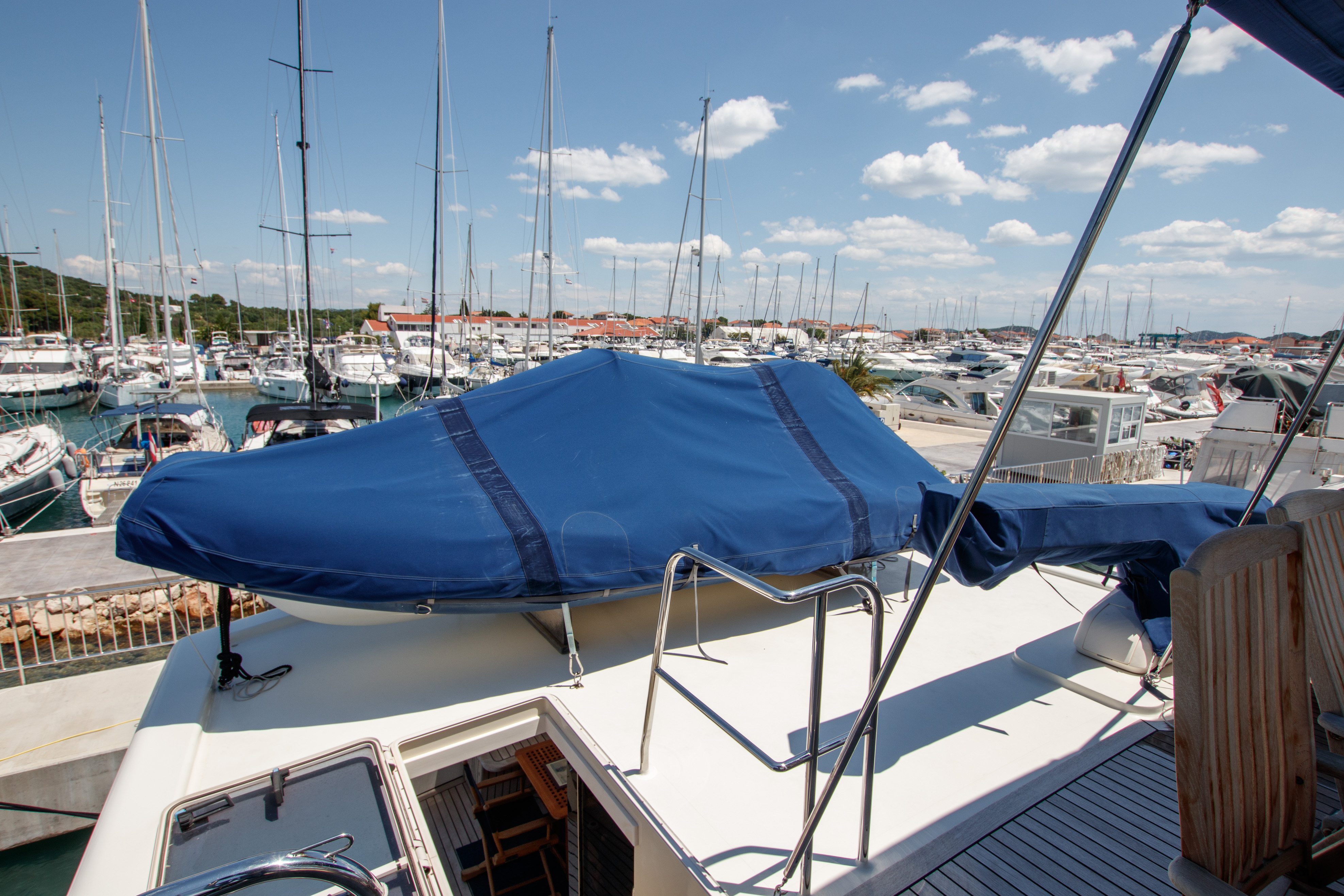

Dinghy: Brig F450 2015

Outboard: Mercury 60hp 4 cilinder 4stroke

Deck crane: electric  400KG Brenzoni electric/hydraulic

Sea railing: stainless steel

Railing side opening gates: yes

Life raft: yes

Wiper: 5x Exalto

Horn: air pressure

Fenders: yes

Mooring lines: yes

TV: 40" LCD

TracVision ball: 2x Tracvision TV6

Radio: yes

Surround Sound System: Samsung

Auto extinguisher system: yes

Extra info: Dive compressoreries

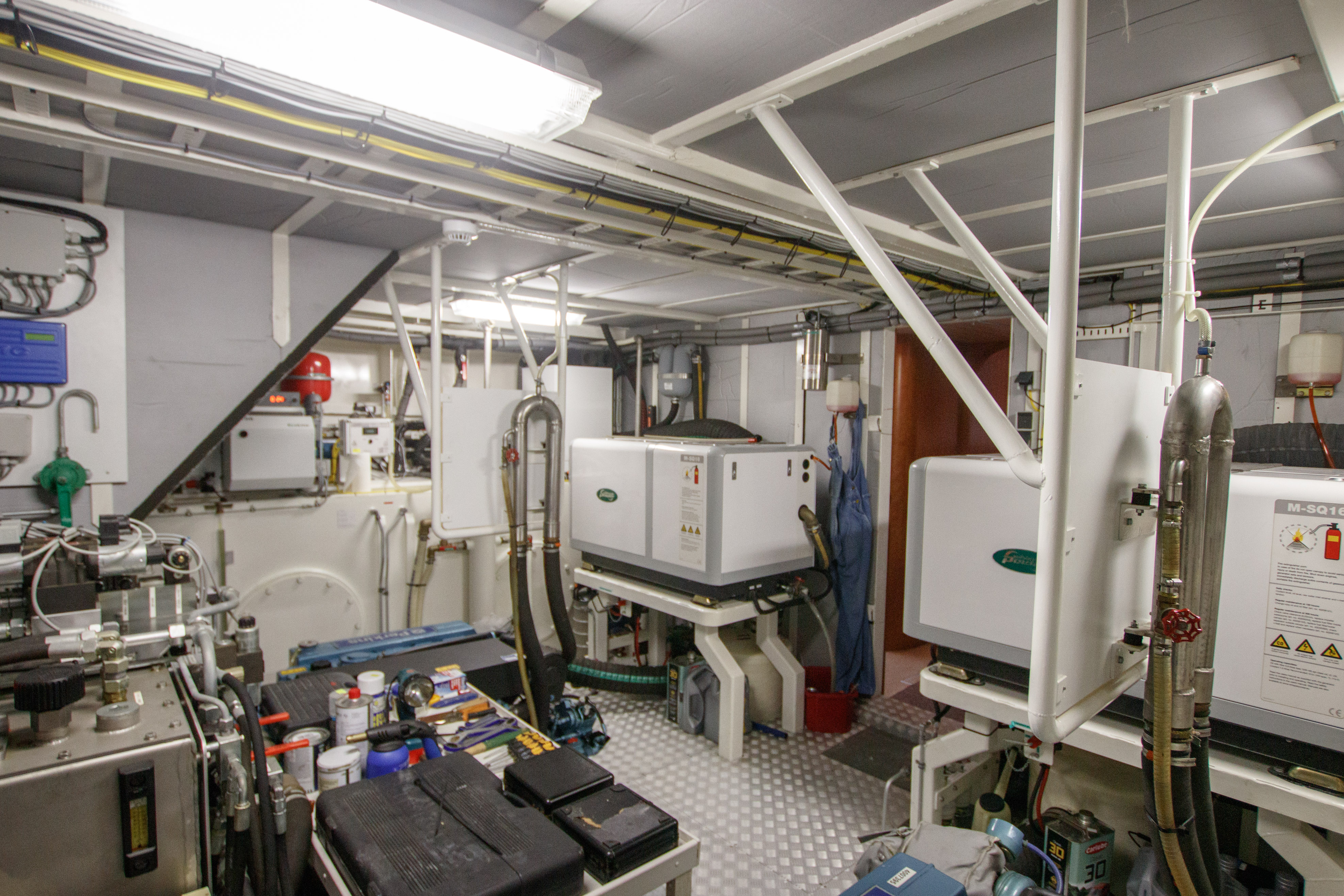

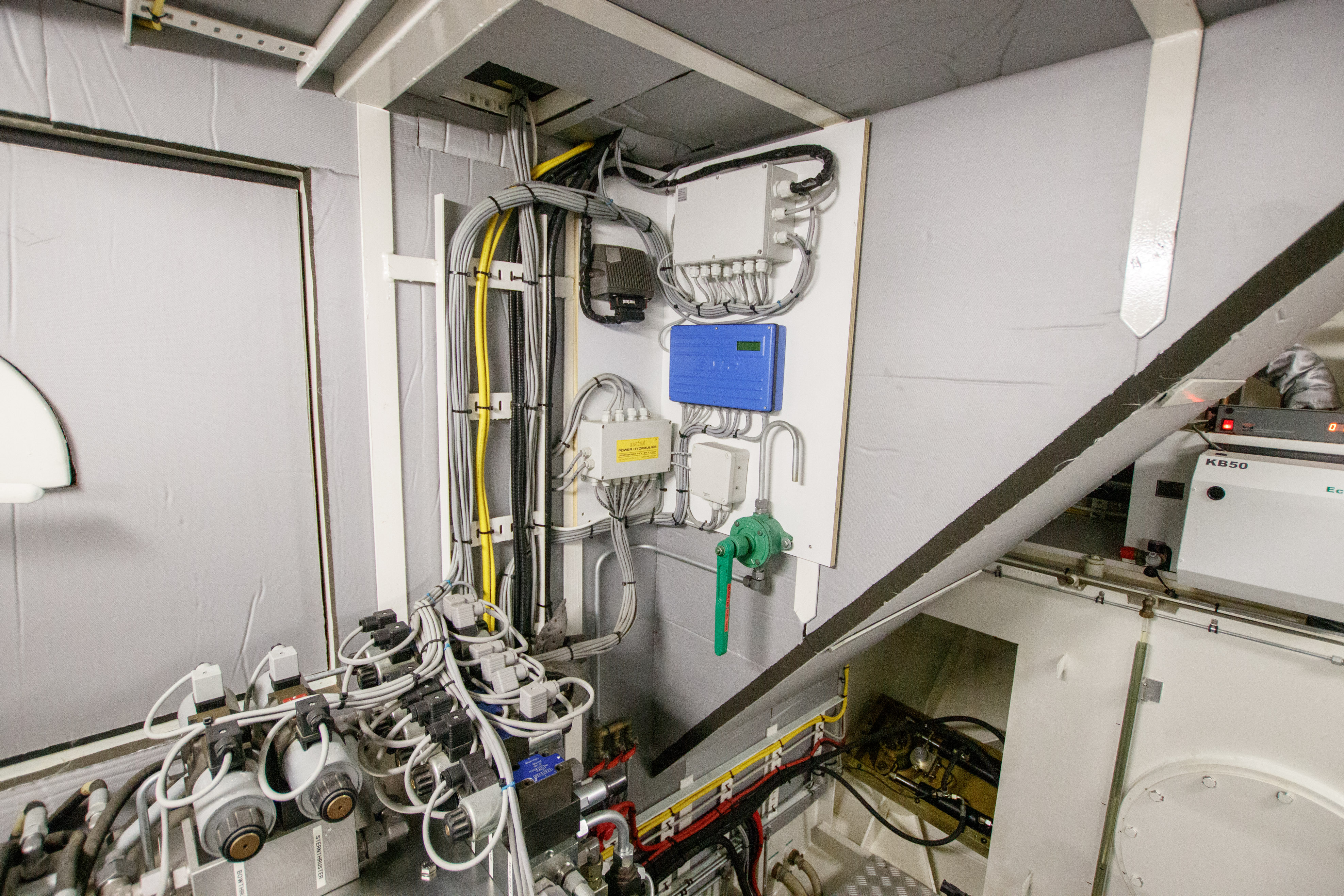

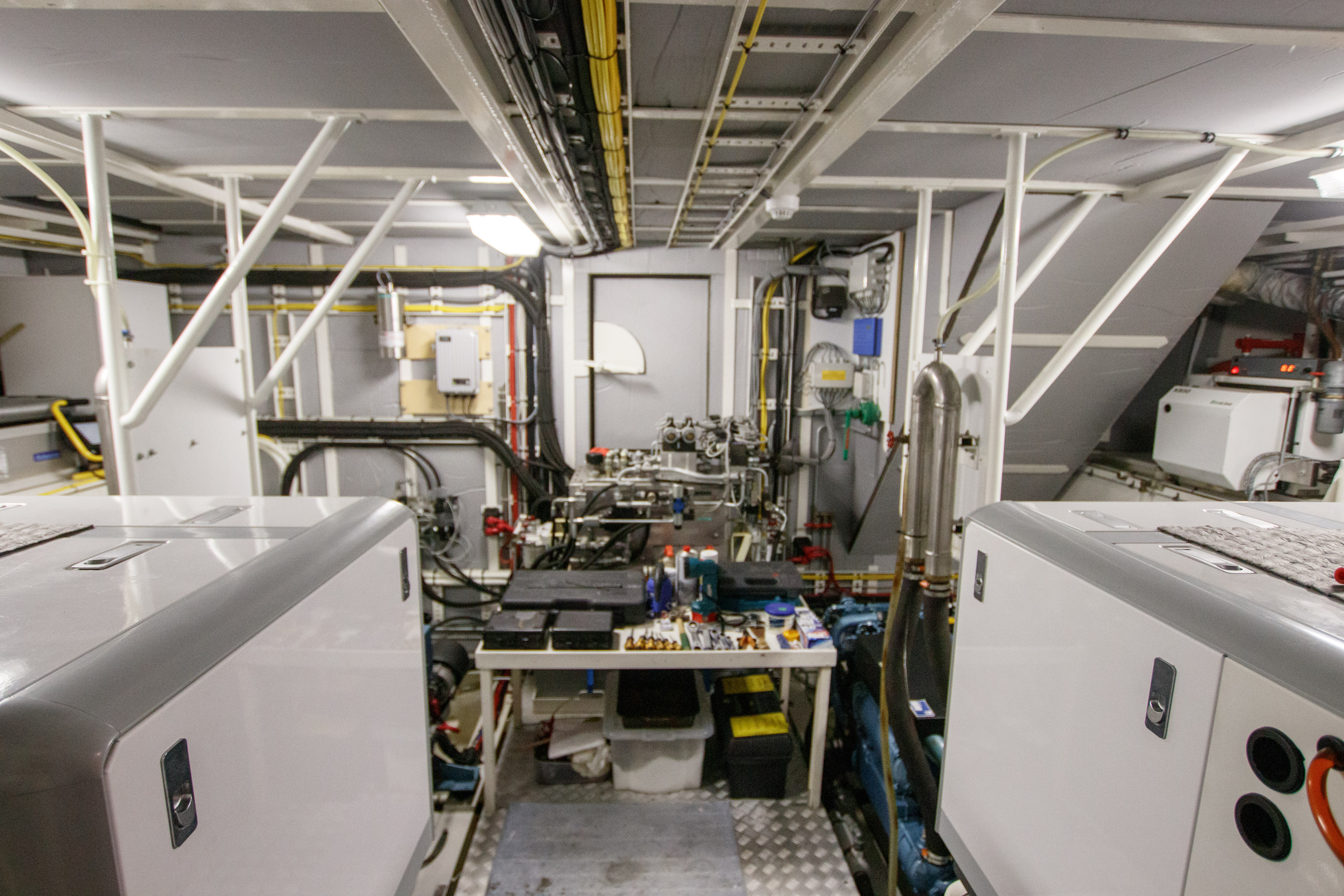

ENGINE ROOM / ELECTRICAL

Number of engines: 2

Make: Perkins

Type: M 300

HP: 300

kW: 220.80

Fuel: diesel

Maximum speed:11.5 kn

Cruising speed: 8 kn

Consumption (l/hr): 40

Engine hours: 1670

Engine cooling system: freshwater heat exchanger

Drive: shaft

Shaft seal: 2021

Engine controls: electrical

Gearbox: hydraulic  ZF 280-1 2,478:1 ratio

Bowthruster: hydraulic  Vetus 310 kgf

Sternthruster: hydraulic  Vetus 310 kgf

Exhaust: watercooled

Thrust bearing: yes

Propeller type: fixed

Propeller blades: 4

Propeller shaft material: stainless steel

Shaft lubrication: water

Electric bilge pump: 2 bilgepumps with a manifold for 4 seperate area's

Bilge alarm: yes

Electrical installation: 12/24/220 Volt

Generator: Whisper 16KW

Generator 2: Whisper 16KW
Batteries: yes

Start battery: 4x AGM 225 Ah Mastervolt

Service battery: 1000Ah 2-volt cells batteries

Generator battery: 2x AGM 145Ah Mastervolt

Battery monitor: Whisper

Battery charger: yes

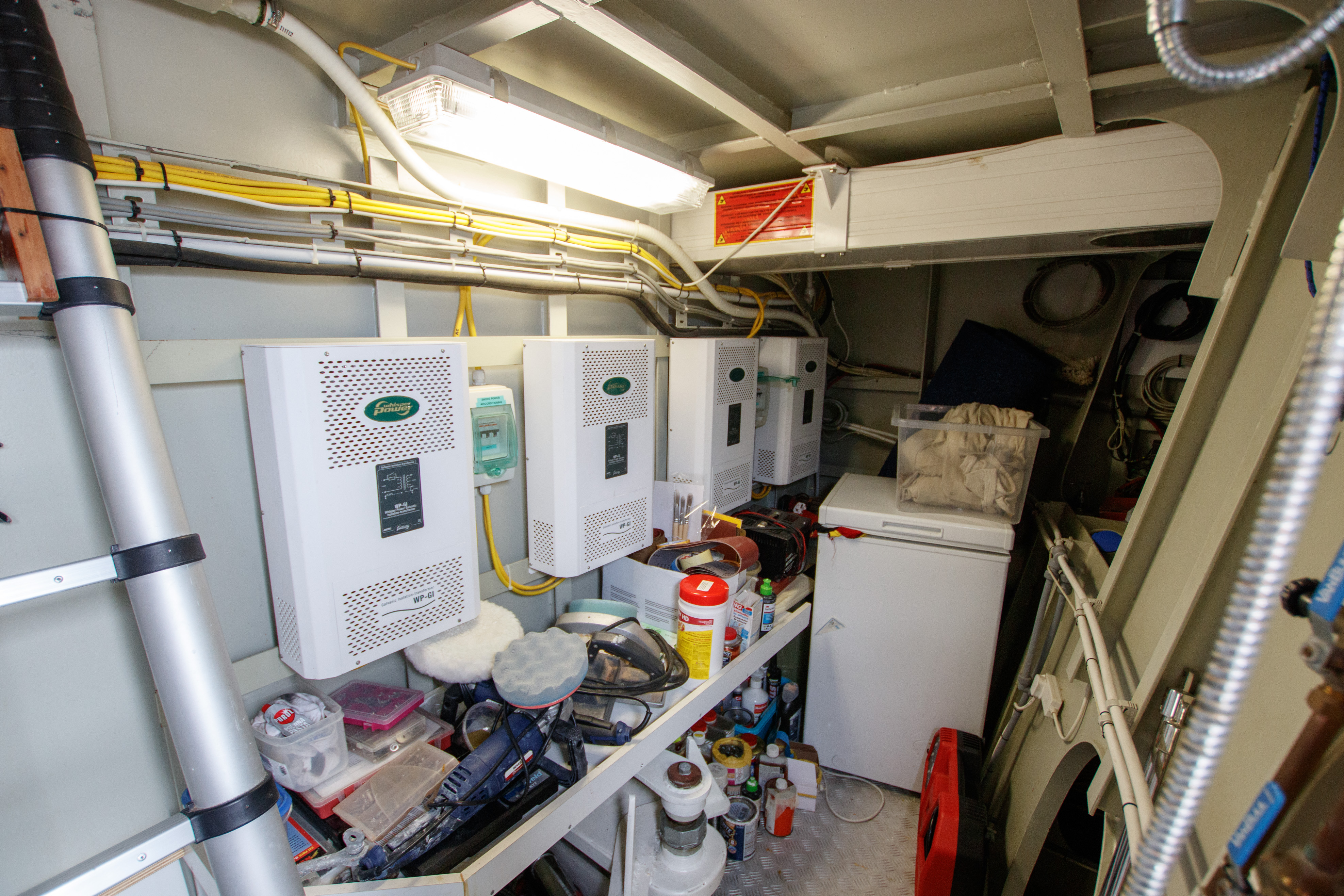

Battery charger/inverter: 2x Whisper 3500W/32A

Solar panel: 3x

Diode battery combiners: yes

Shorepower: with cable  2x

Insulation transformer: yes

Watermaker: Schenker Modular 60

Stabilizers: Hydraulic Fin stabilizers



NAVIGATION

Electric compass: Raymarine Autopilot

Depth sounder: Raymarine

Log: Raymarine

VHF: Raymarine

Autopilot: Raymarine

Rudder angle indicator:Raymarine autopilot display

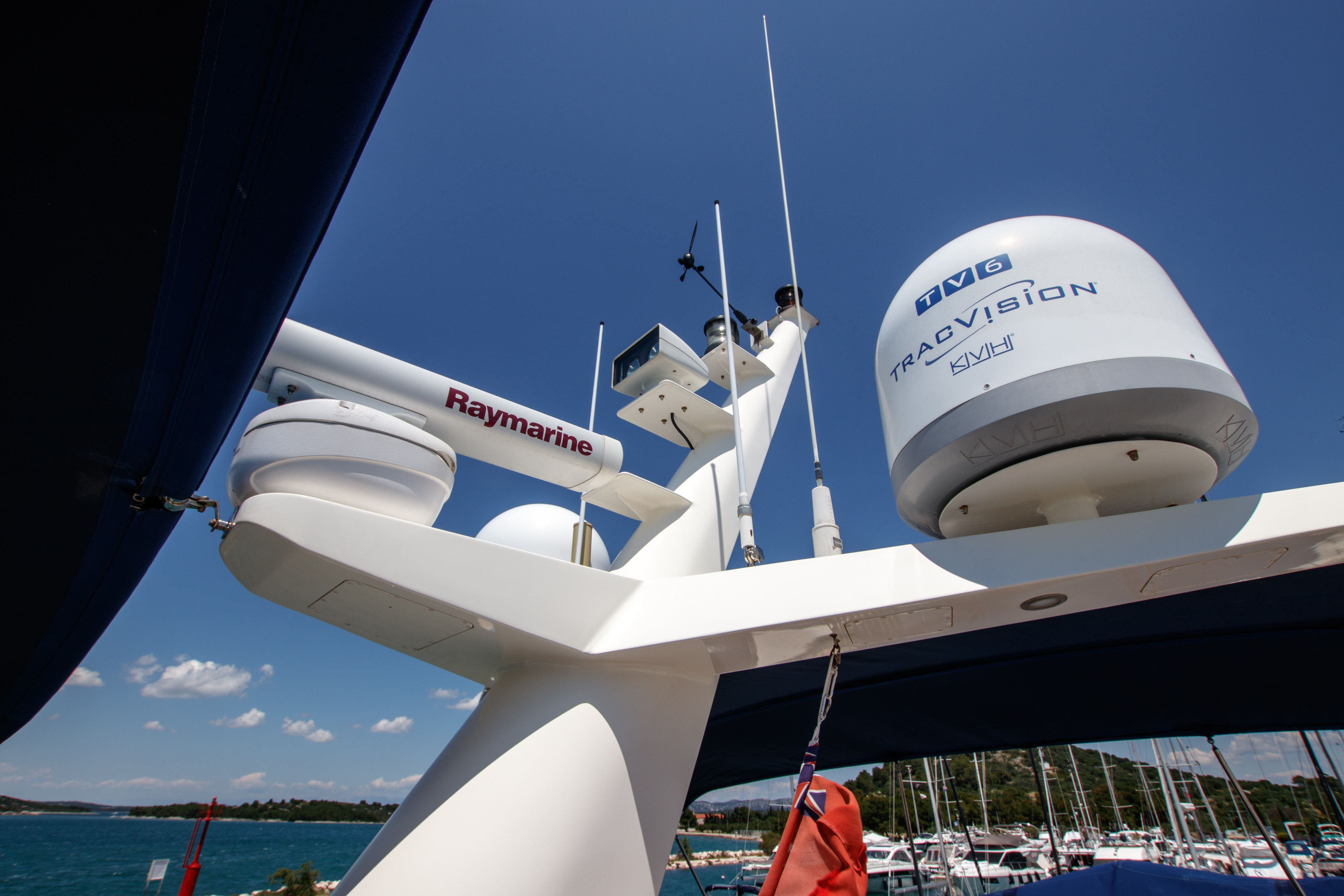

Radar: Raymarine open scanner 4KW

Radar/GPS/plotter: 2x Raymarine E125 + 1x Raymarine E125 outside

Navtex: Furuno

Wifi antenna: yes

AIS transceiver: Raymarine

Camera: 4x sb & port, rear and engineroom

Navigation lights: yes



PAINTING

-       VDE SuperYachtsystem AWL-Grip



CLASSIFICATION

-       CE-A.
