TE KOOP!

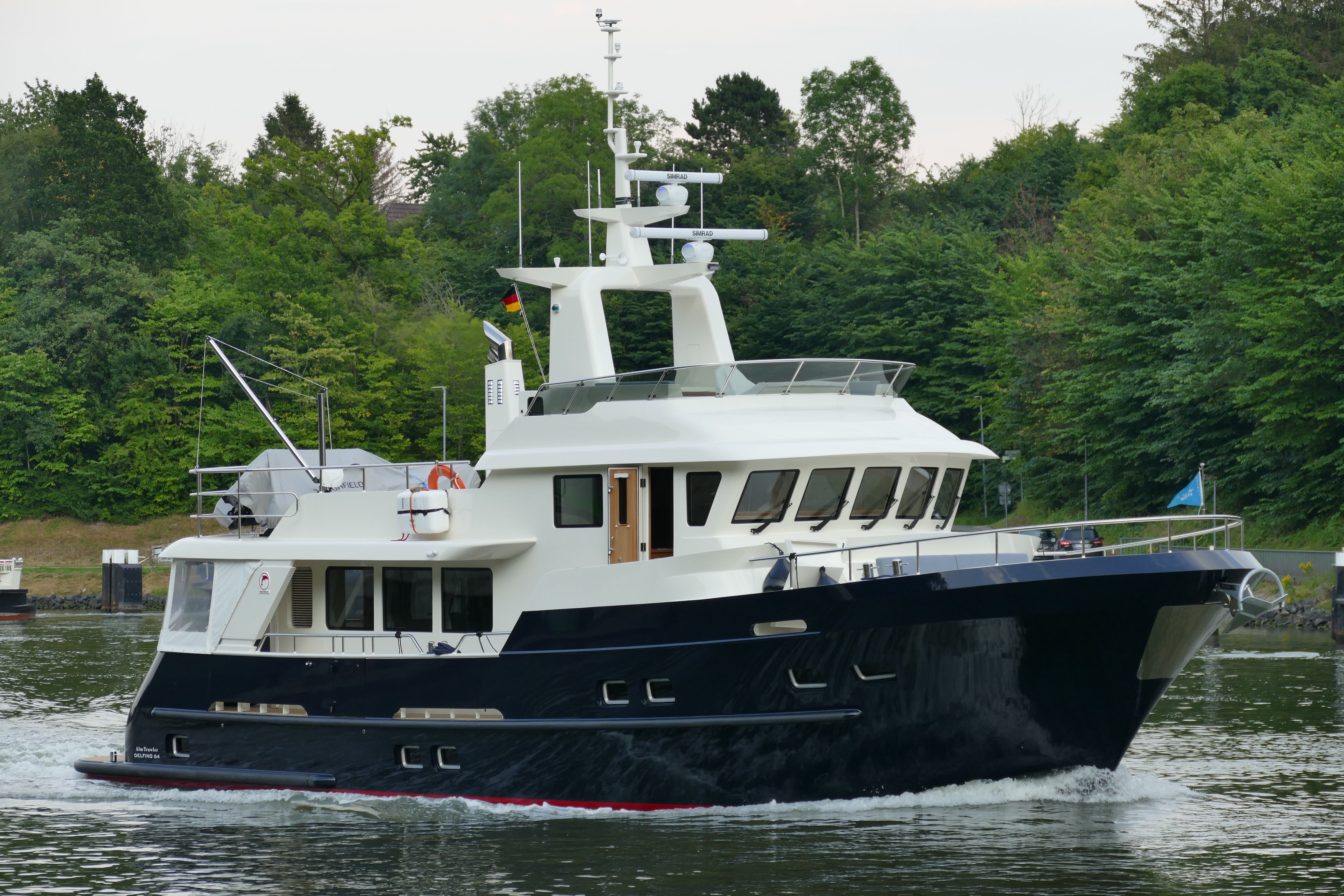

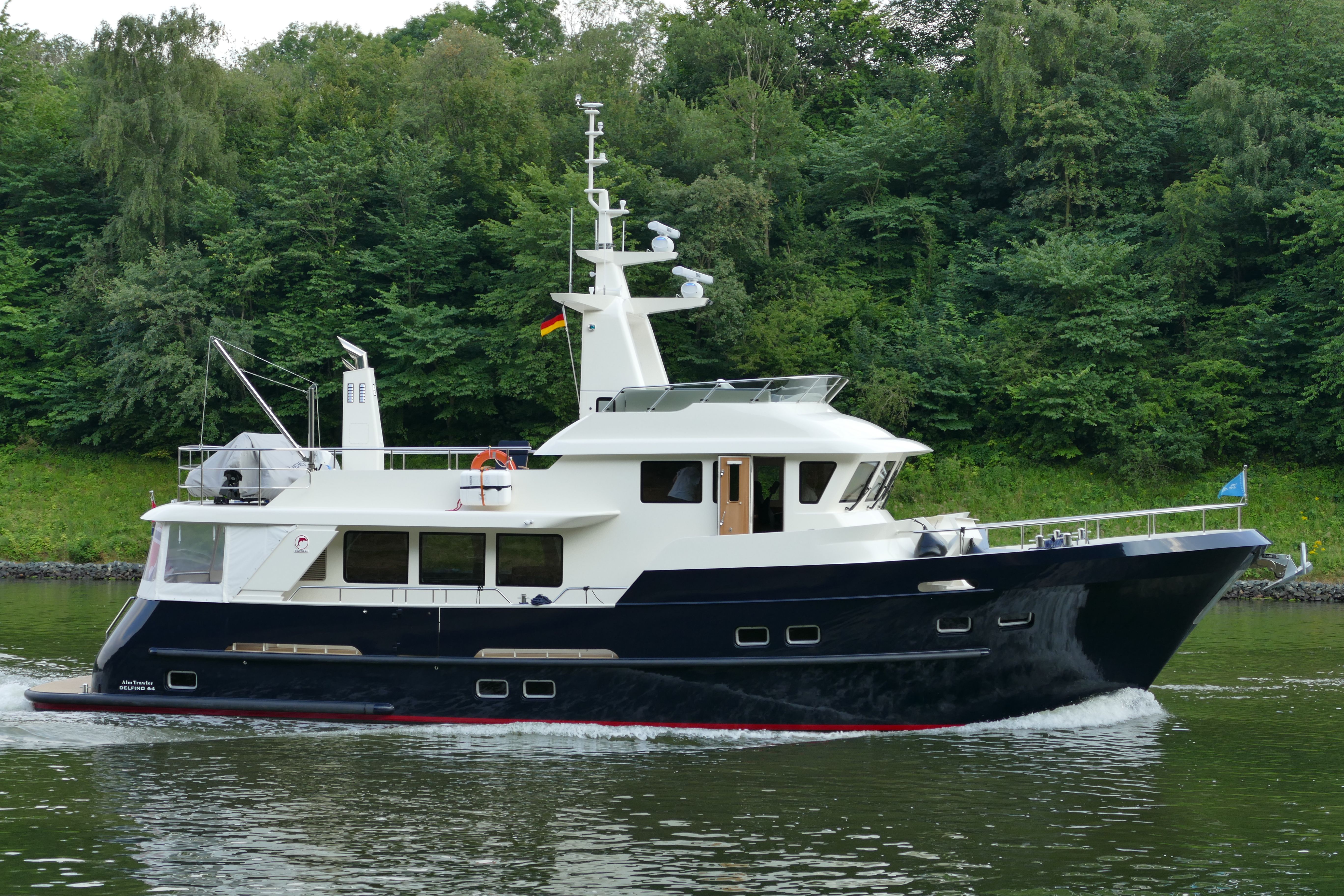

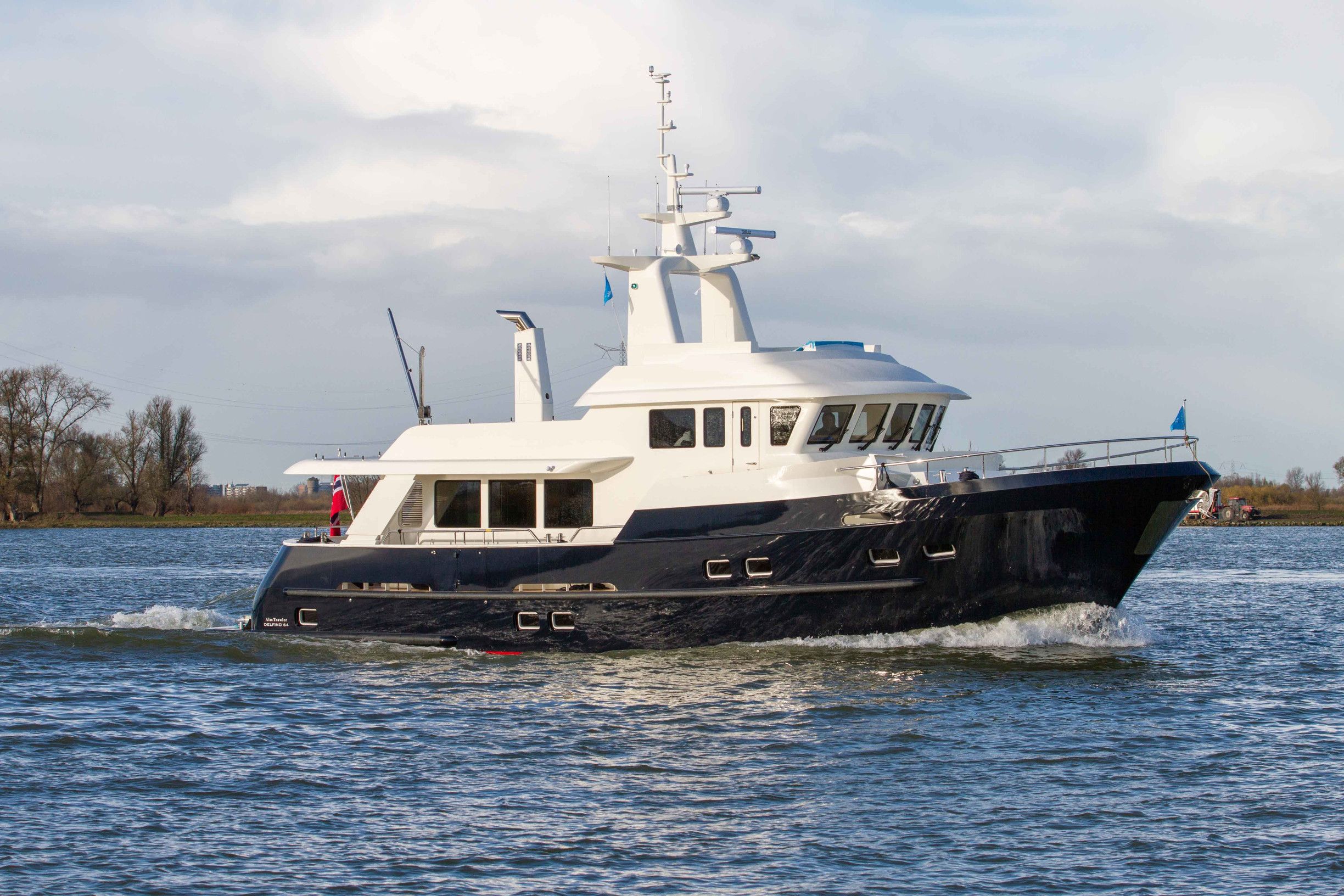

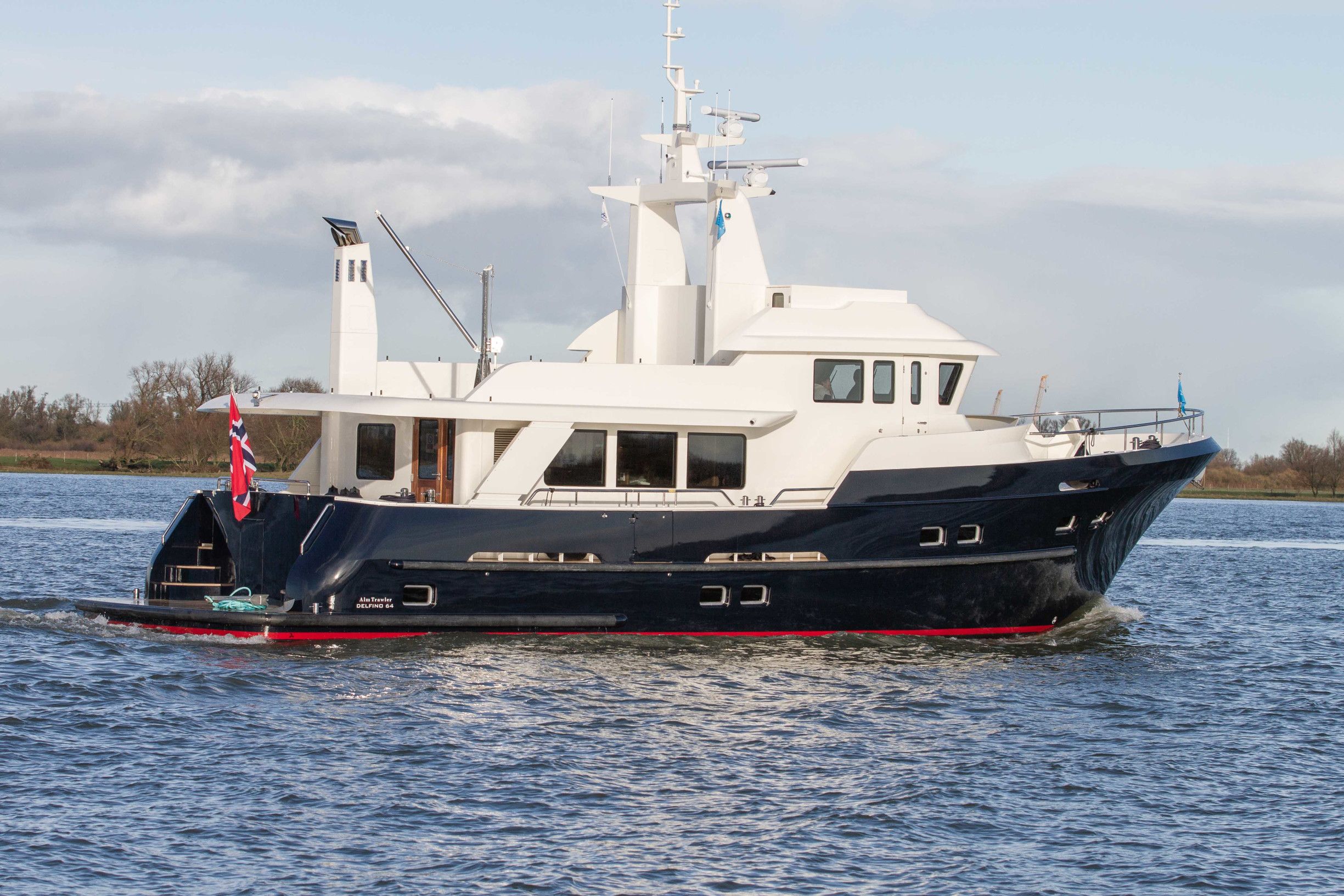

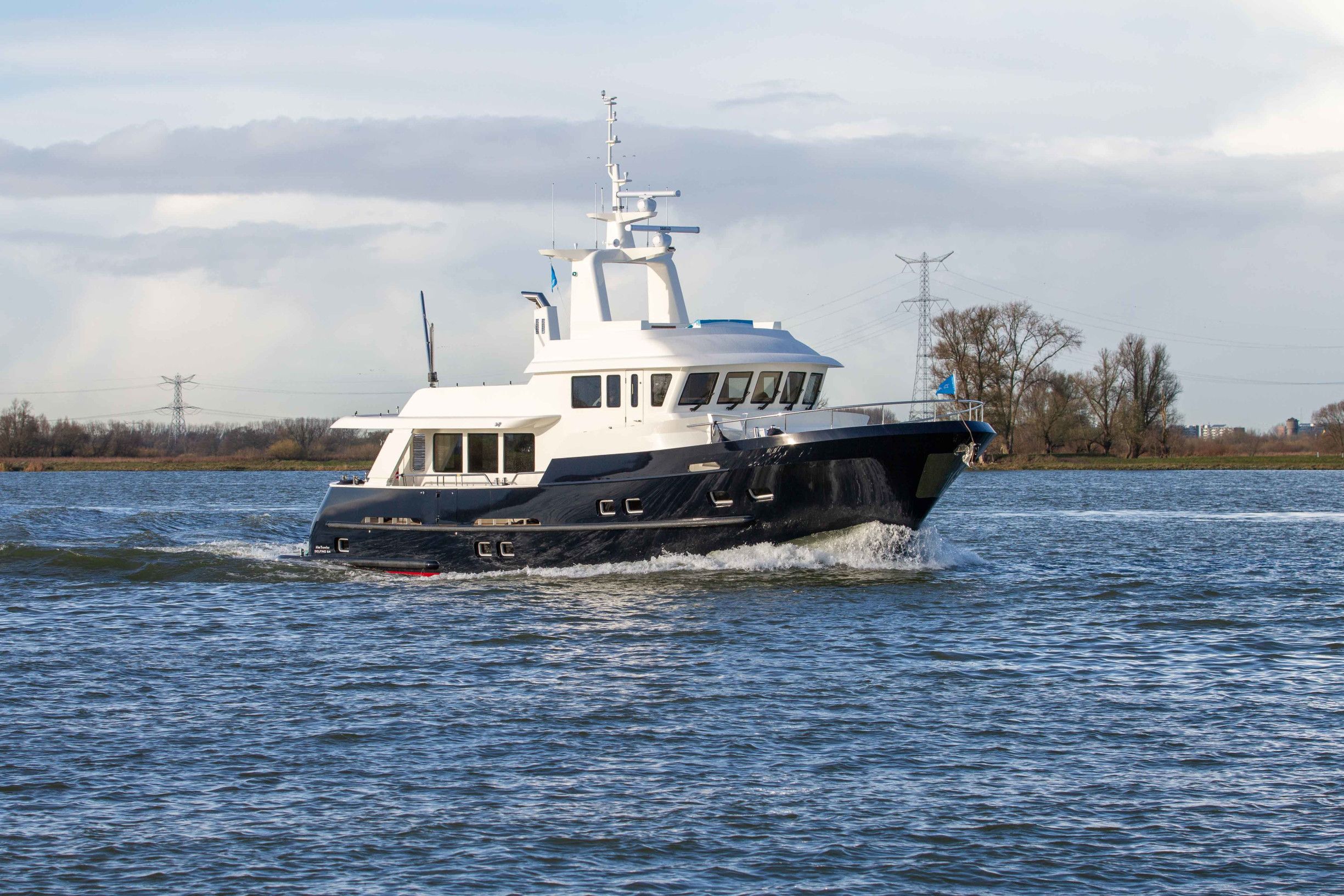

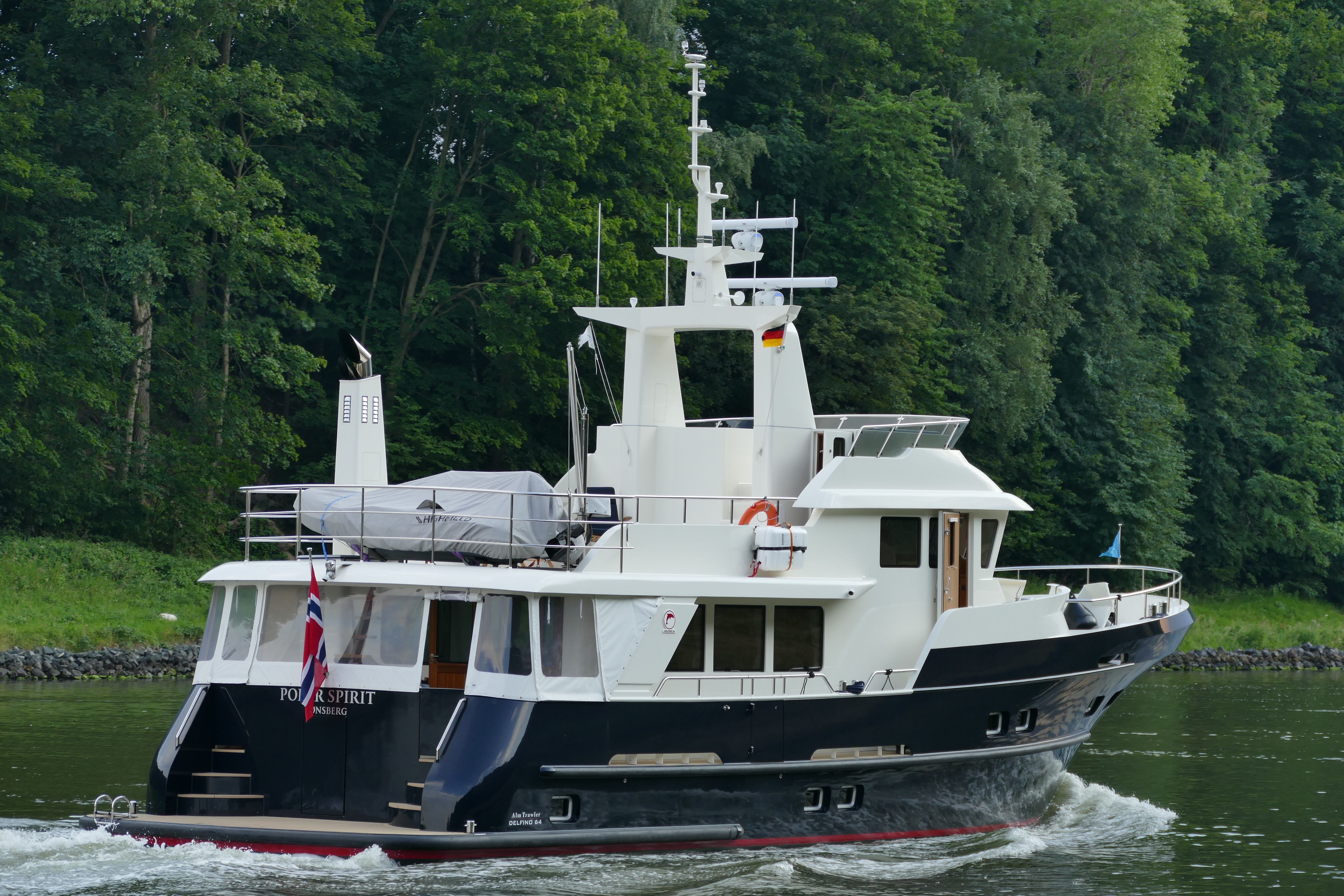

DELFINO 64

Specifications Delfino 64

DIMENSIONS

Length overall:                                   19,75 meter

Beam:                                                    5,65 meter

Draft (to LWL):                                     1,85 meter

Displacement (to LWL):                             65 ton

Material hull:              Grade A-steel 8, 6, 5 mm

Aluminium construction:                           5 mm

Water capacity:                                  1.500 liters

Fuel capacity:                                   10.500 liters

Holding capacity:                          240/250 liters



LAY OUT

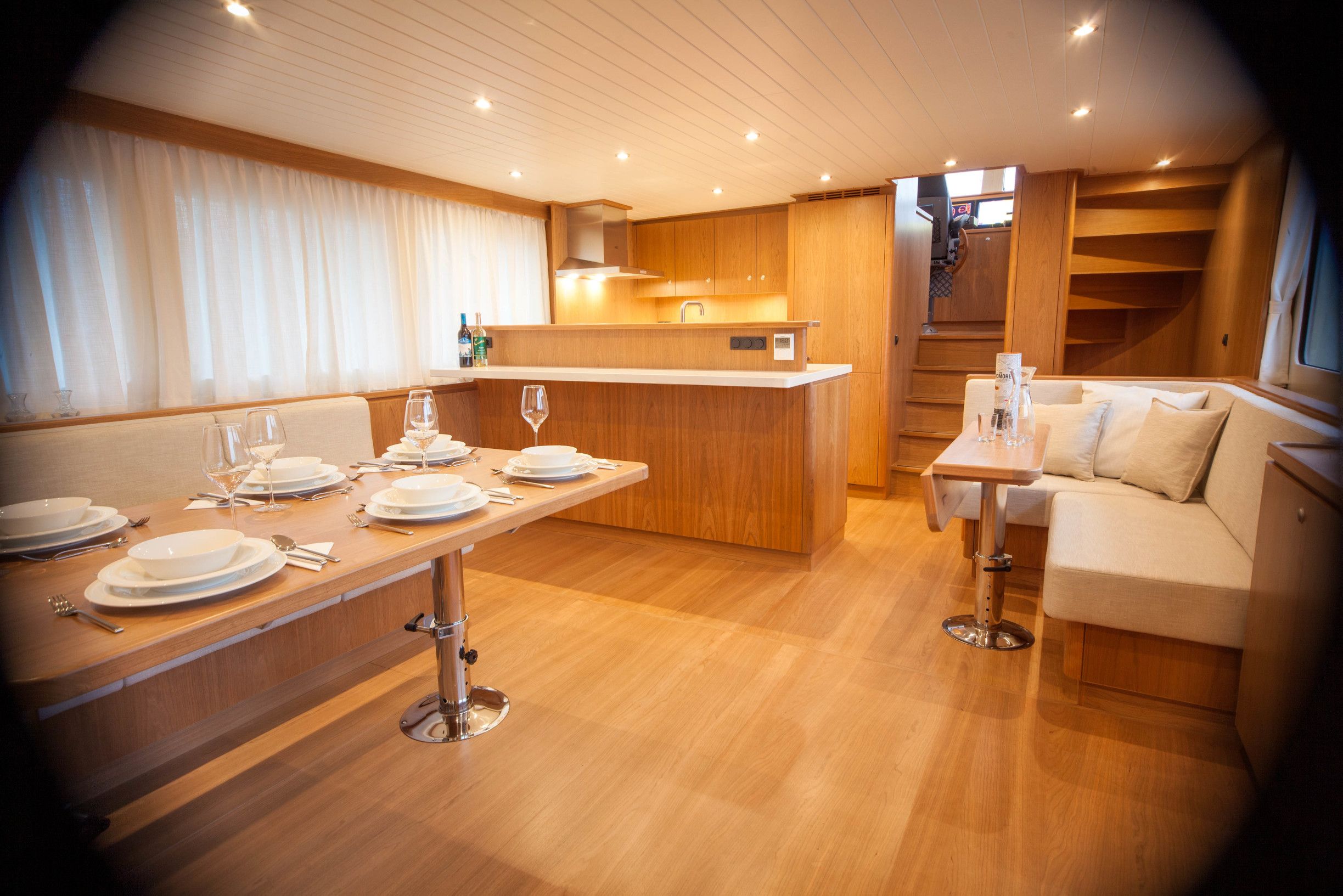

-       Salon/galley.

-       Wheelhouse with 2 side doors + entrance to flybridge.

-       3 guest cabins.

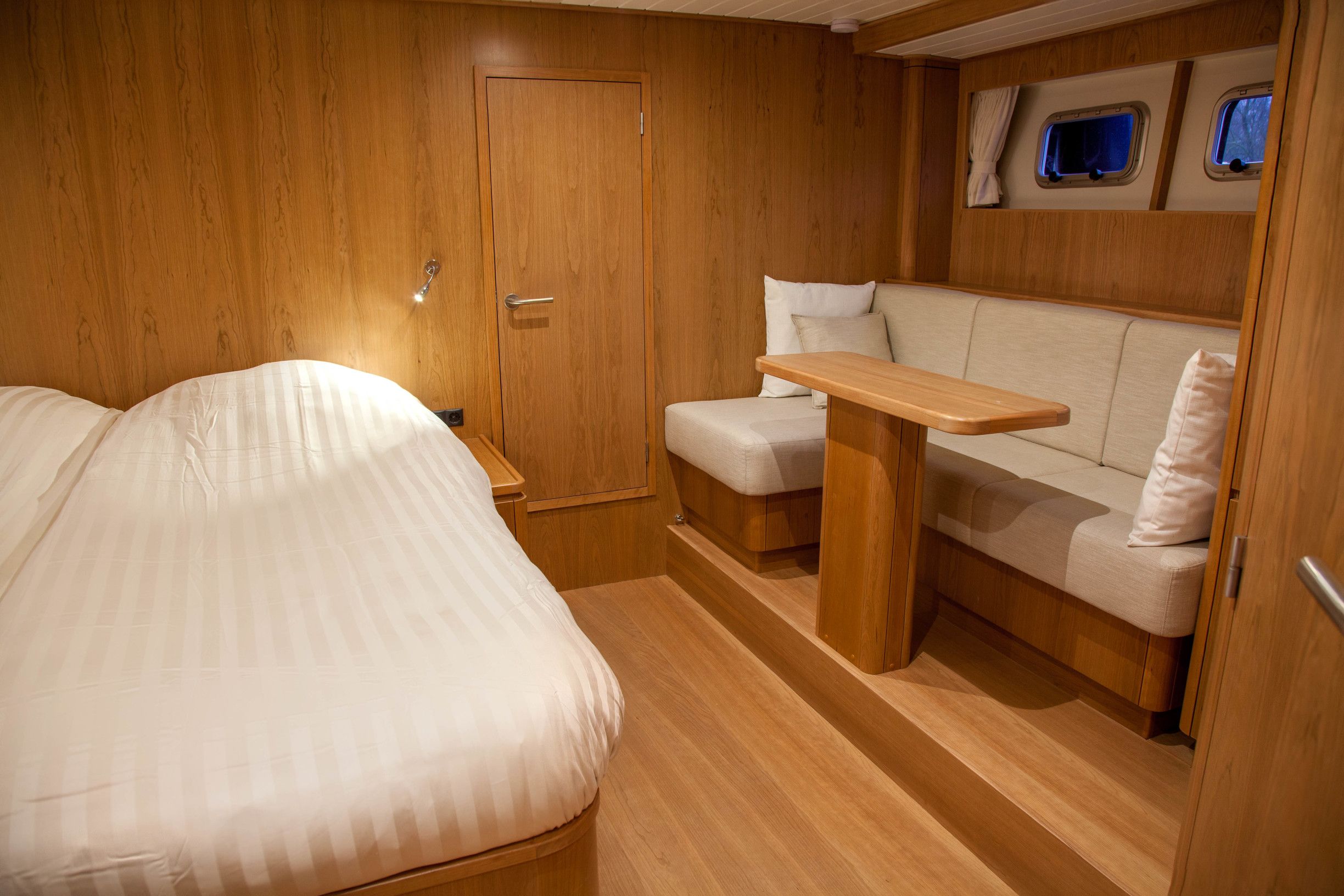

-       Masterbedroom.

-       Crew bed in lazaret.

-       Captains bed in wheelhouse.



GENERAL

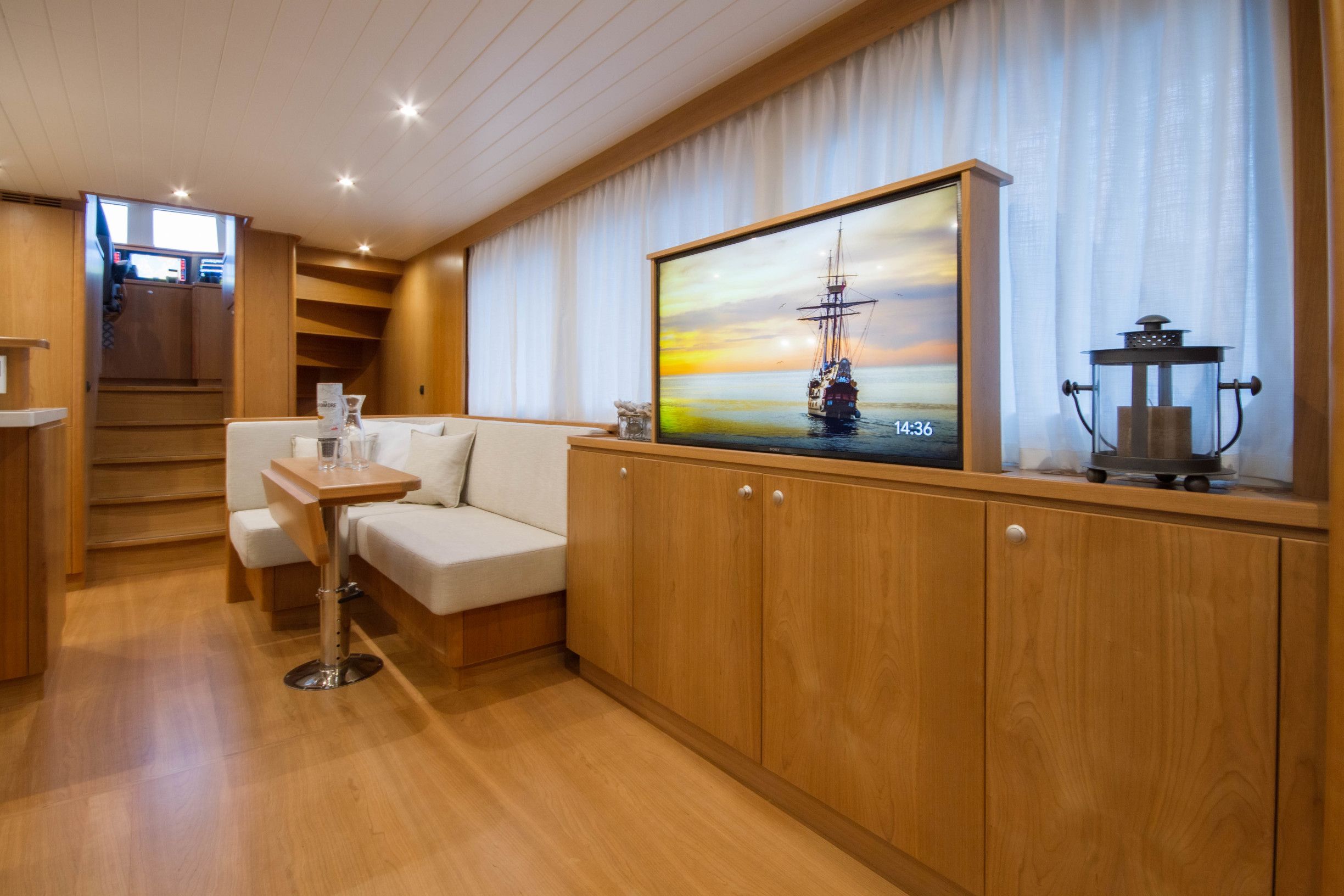

-       Tv 40" on an electric lift in salon.

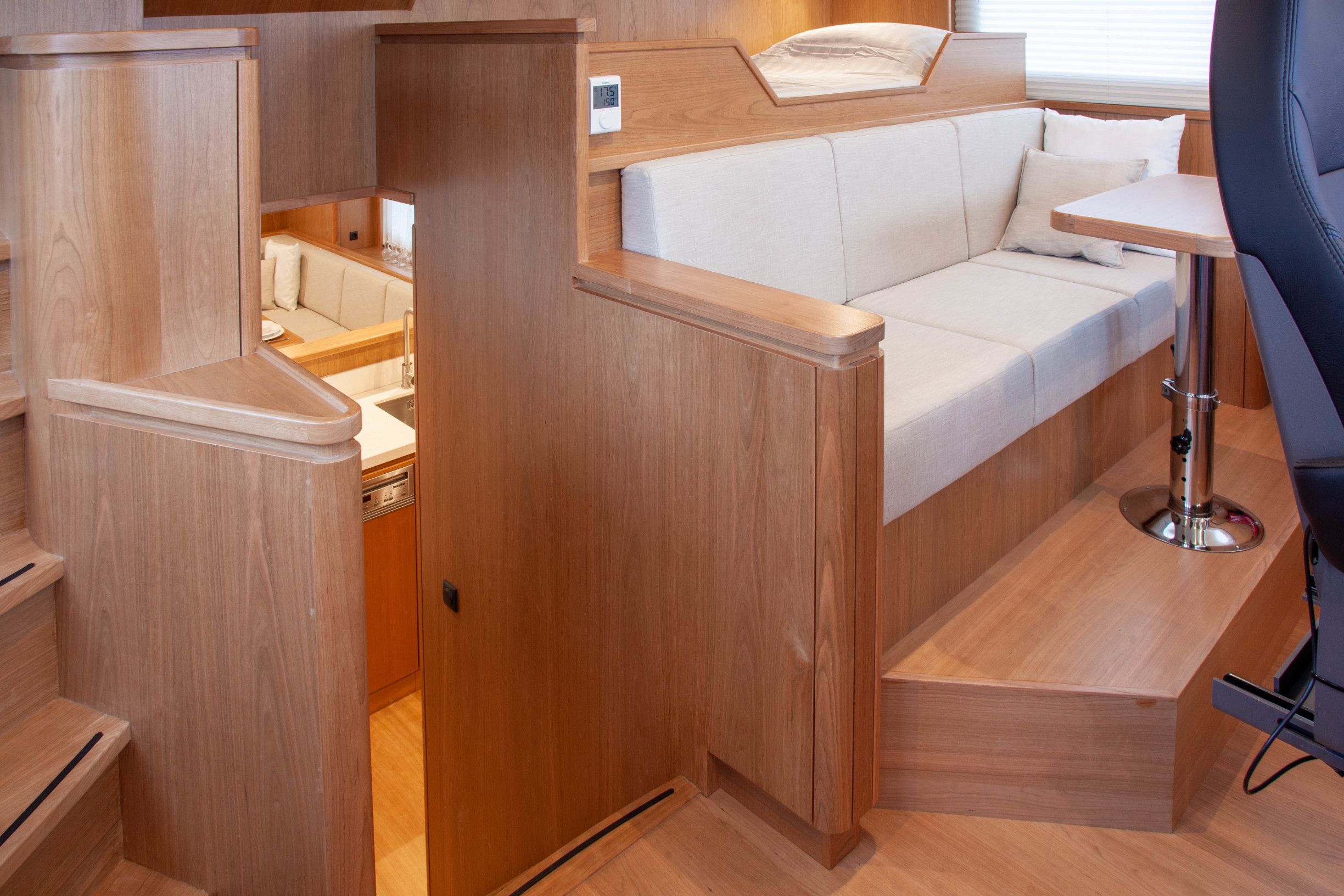

-       Fixed sofa on aft deck, bow and flybridge.

-       Stainless steel stairs from aft deck to flybridge.

-       Stainless steel railing all around.

-       Stainless steel protection strips at bollards.

-       Stainless steel tap on Flybridge.

-       Permateek on swimming platform, aft deck and gangways.

-       Anchor winch Maxwell 4500 VWC with Rocna anchor 110 kg.

-       100 meter 16 mm DIN 766, G43 chain (6,1 kg/meter).

-       Viking liferaft 2x 6 persons self lifting UKSL incl bracket.



ENGINE ROOM

-     1x John Deere 6135 SFM 85, 425 pk.

-       Oil bath propeller shaft.

-       Separ revirsible fuel filter.

-       Merford sound isolation.

-       Automatic fire extinguiser.

-       Automatic bilge pump.

-       Amartech easystern oil bath propeller shaft.

-       Hydraulic installation for bow and stern thruster, anchor winch and  stabilisers. (Side-Power, Sleipner).

-       Dry exhaust with silencer/exhaust by chimney.

-       Preparation auxiliary engine.



ELECTRICAL

-       Berker Integro switches and sockets.

-       60 LED spotlights interior.

-       10 LED spotlights exterior.

-       5x windshield wipers Exalto.

-       Heating: Kabola KB 45 combi.

-       Convectors and towel radiators.

-       Generator whisper 10 KW.

-       Inverter/battery charger Victron Quattro.

-       24-8000-200 with shore connection.

-       2x Lithium lon battery set 25,6 V/280 AH/7,2 KW.

-       Extra alternator 150 Amp. on main engine.



NAVIGATION

-       2 steering cilinders instead of 1.

-       3x 18,5” Panel Mount Glass Extended monitor.

-       1x Simrad NSO EVO3S Marine Processor unit.

-       1x AP 70 MK2 Autopilot package.

-       2x FU80 follow up remote with display.

-       3x IS 42 multifunctional display.

-       1x HS75 GPS compass.

-       1x DST 800 active transducer.

-       1x Simrad Halo-4 pulse Compression radar with 4ft antenna.

-       1x 120WX weather station, wind, temperature and Barometic sensor.

-       4x camera, sb and port, rear and engineroom.

-       Router, 4G antennas, computer NUC PC i5.

-       Sailor VHF 6222.

-       1x Simrad OP 50 remote controller.

-       AIS Class B+.

-       Kahlenberg S-0A horn with compressor/tank 24 V.

-       Radar Halo 6.

-       AIS SART.

-       Epirb in box automatic Tron 60SPS.

-       Remote control RMC for engine, bow and stern thruster.



SANITARY/KITCHEN

-       2x shower with toilet.

-       Composite countertop in toilets, masterbedroom and guests.

-       Countertop of the galley in composite .

-       Kitchen sink.

-       Miele induction hob.

-       Miele extractor hood.

-       Miele dishwasher.

-       Refrigerator with freezer.

-       Miele oven.

-       Carrousel in corner of galley.

-       Washing machine/dryer.



PAINTING

-       VDE SuperYachtsystem 2023-Awl-Grip.



CLASSIFICATION

-       CE-A.



INTERIOR/UPHOLSTERY

-       Cherrywood interior.

-       Plissé curtains 2x for Gebo hatch in guest cabins.

-       Plissé curtains in wheelhouse.

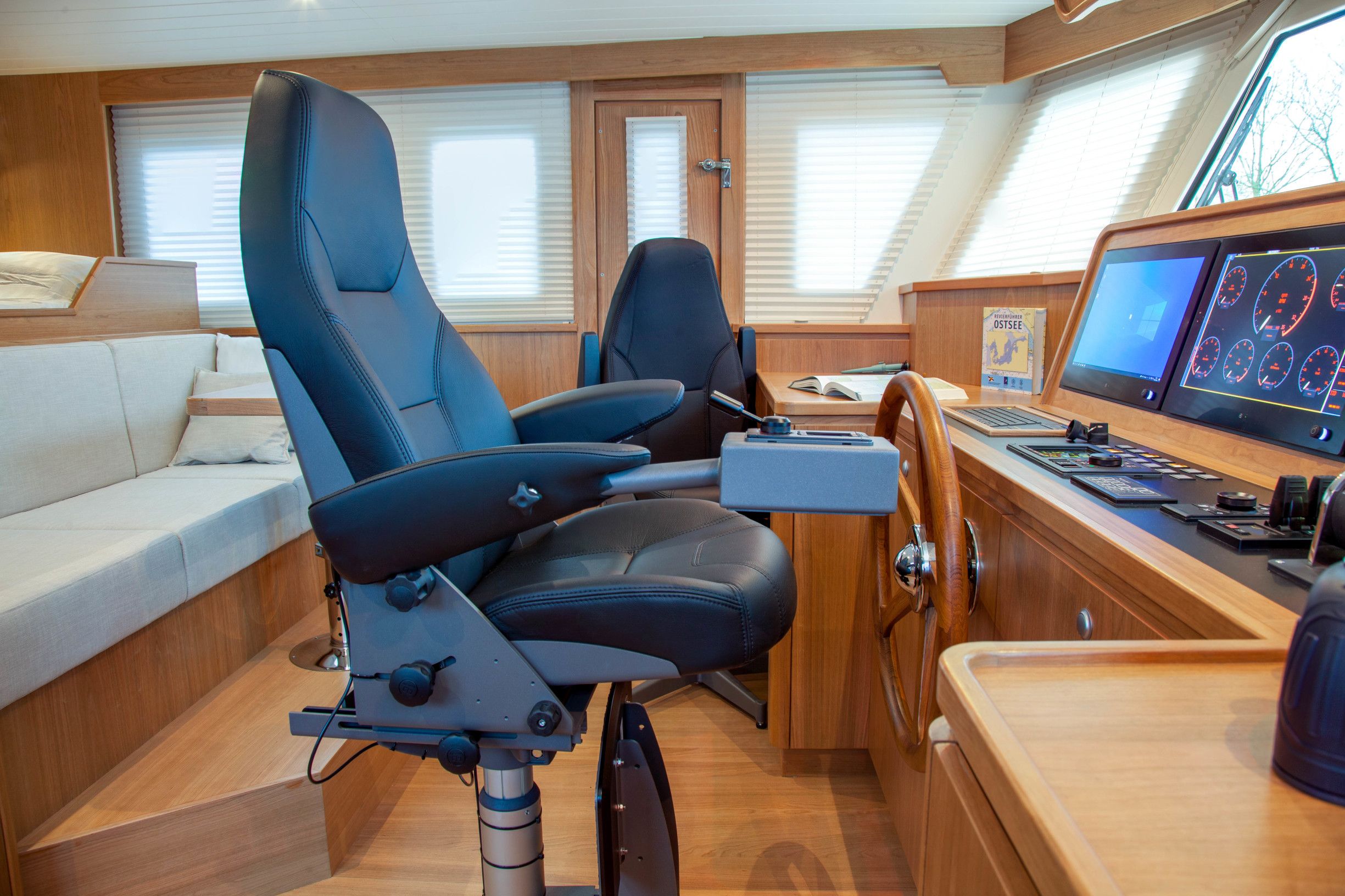

-       Norsap steering chair NS 1000 with fixed flange mounted on the floor.

-       Extra chair Norsap NS 800 office.

-       Exterior upholstery for sofa aft deck, foredeck and flybridge.

-       Tent around aftdeck with 2 “doors” to the gangway.
